Load Cells & Load Shackles

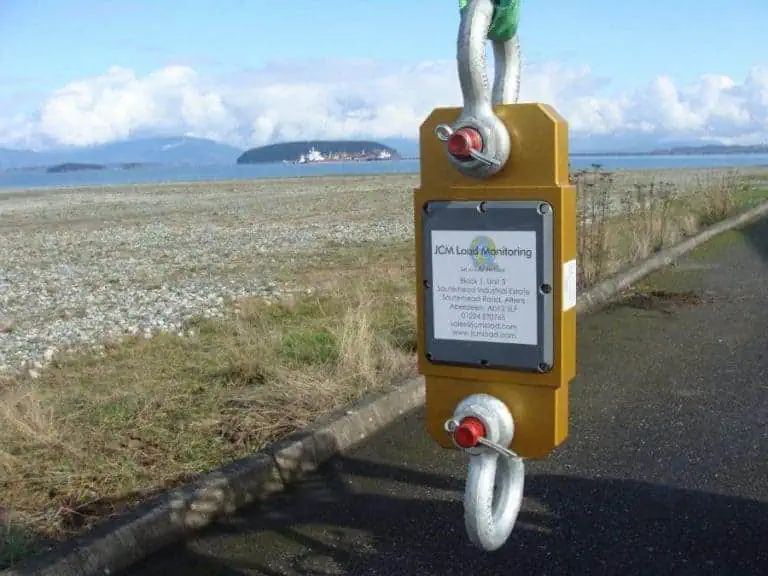

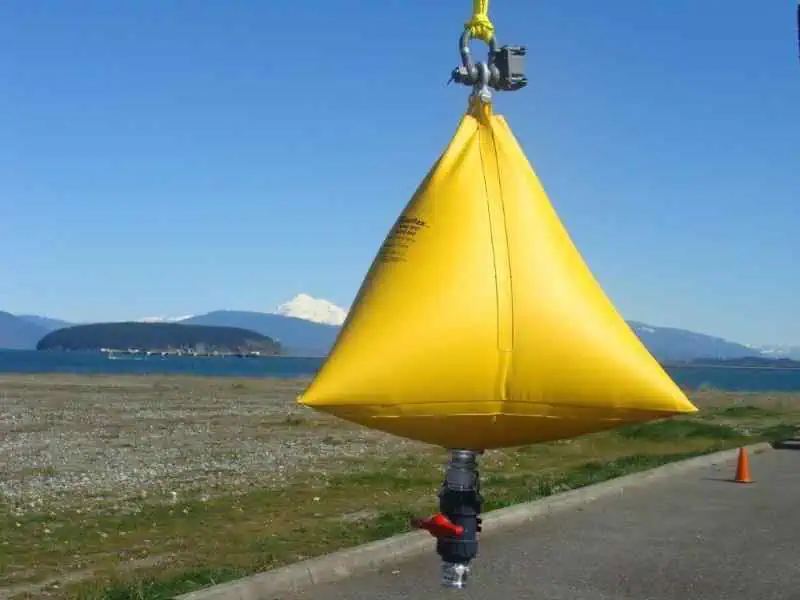

Canflex offers a variety of load cells, and (cable/wireless) load measurement shackles in its line of load measuring products. All units come calibrated to ASTM E-4 accuracy of better than +/- 1% of the applied load.

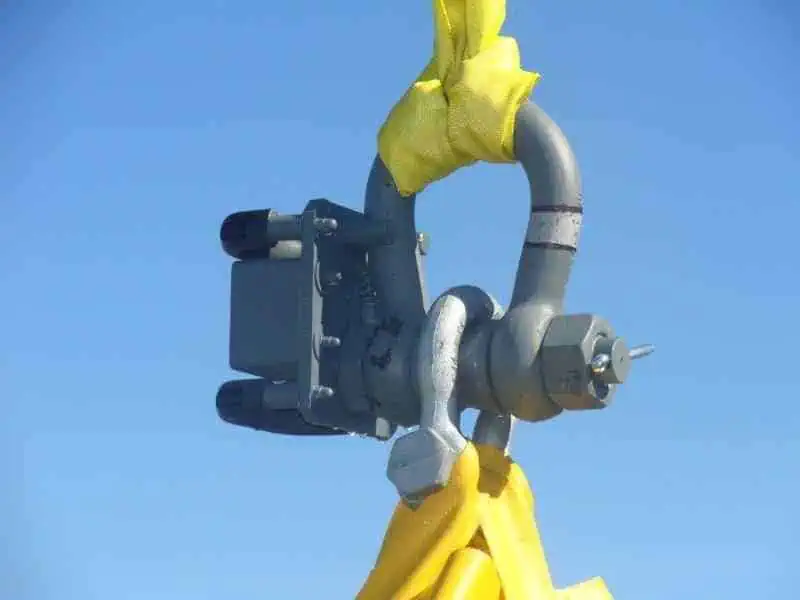

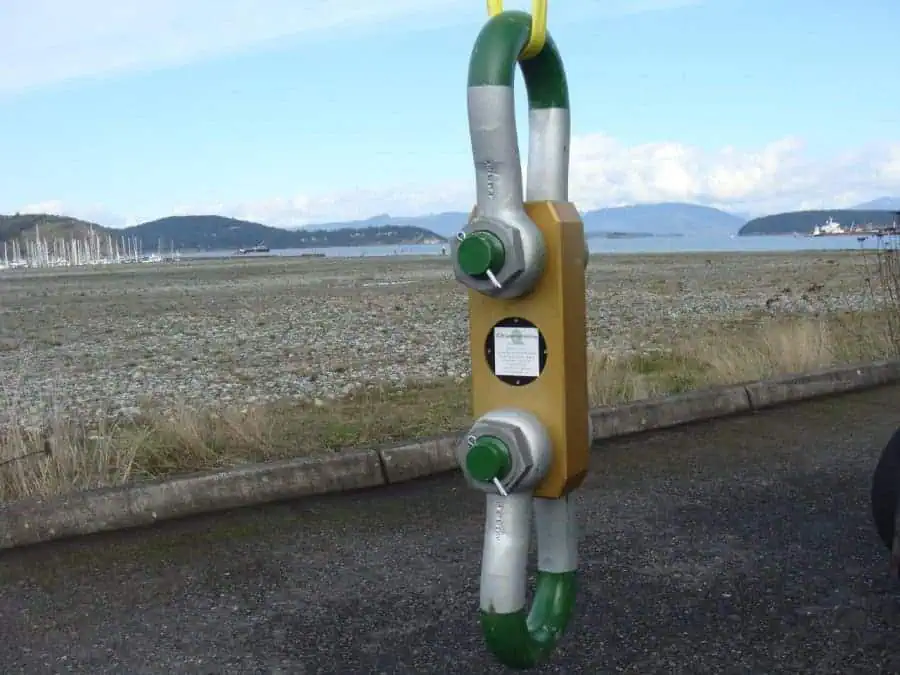

These load cells are available from 5 up to 500 Tons, completed with bow type safety shackles. These load cells are of linear construction, avoiding zero movement effect on calibration and giving industry leading accuracy. Also available, load measuring shackles that can be used in place of a standard shackle to determine the actual weight of the load.
Some of the Load Cell, Shackle and Handset features are:
Load Cell Features

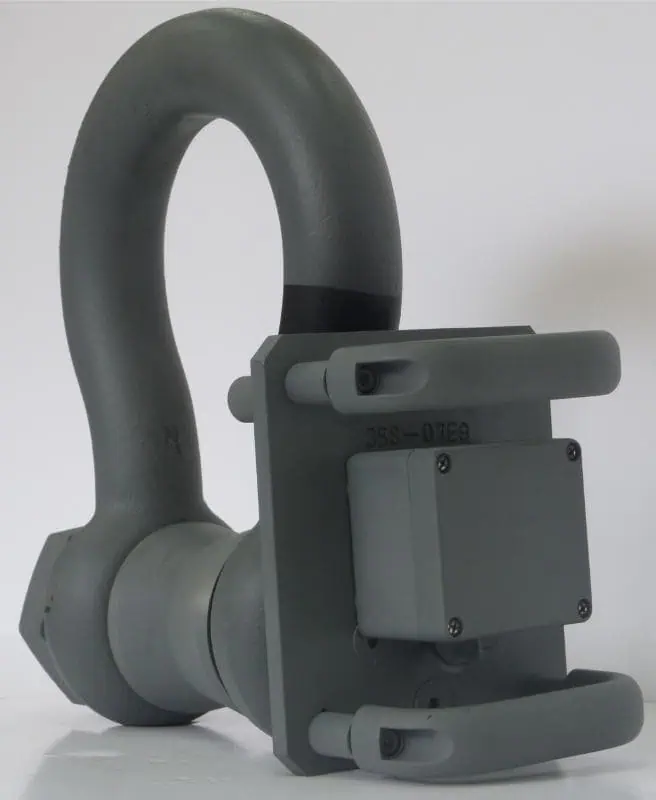

Load Shackle Features

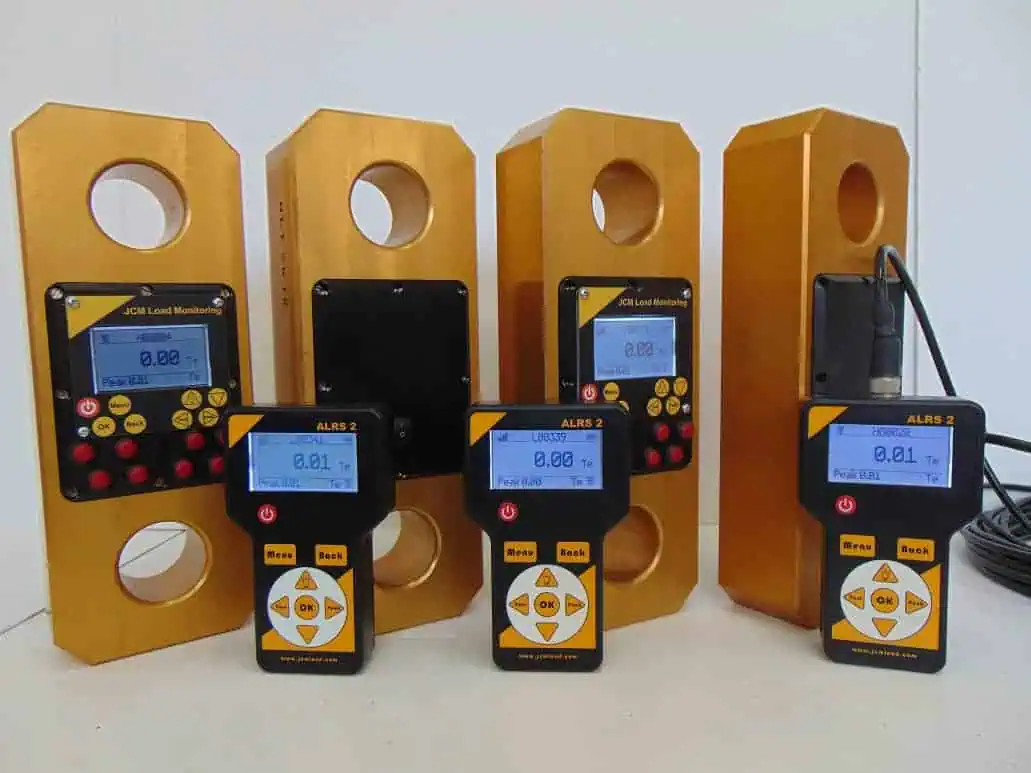

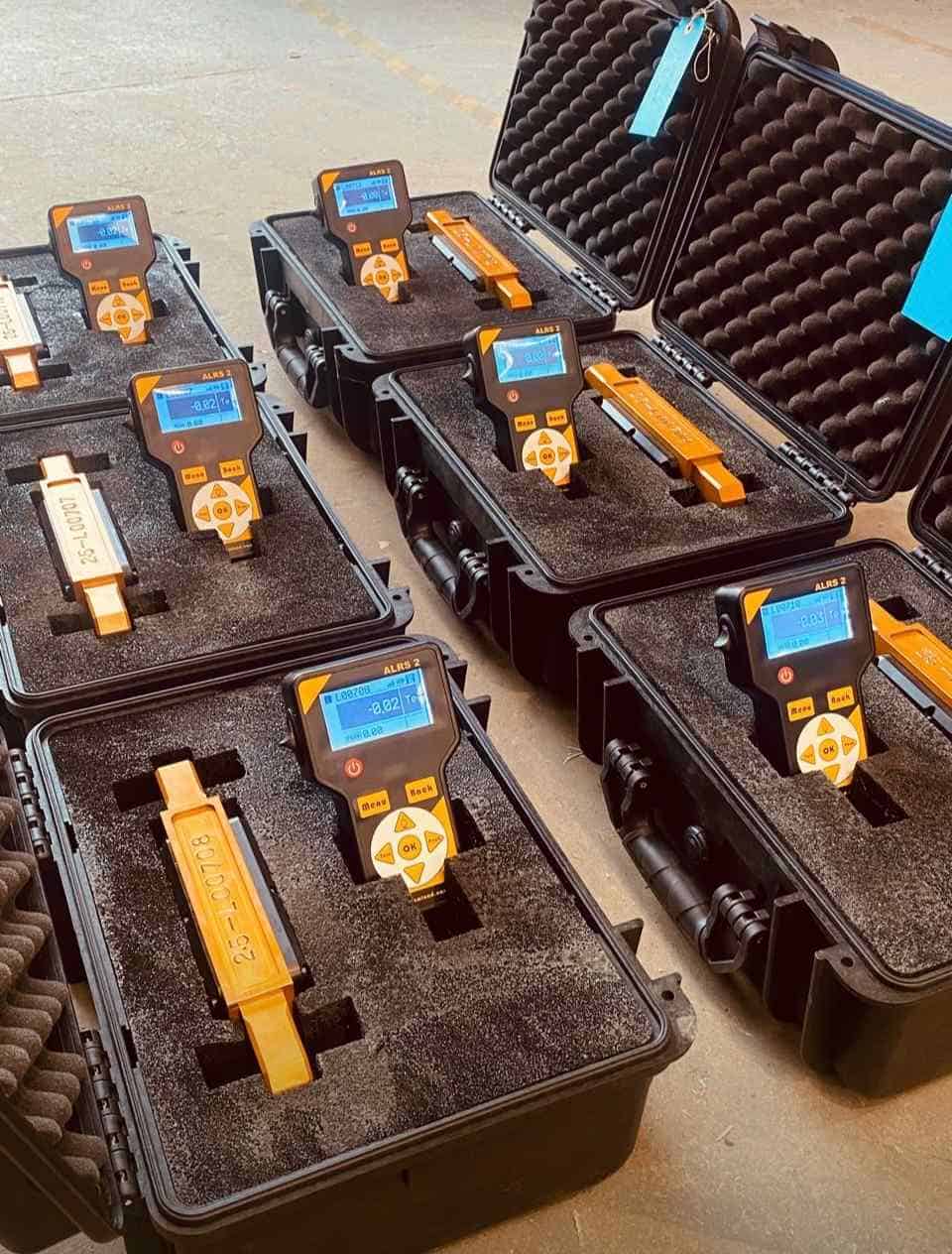

ALRS Handset features
- Certificate of Calibration
- Full 360° (200m) signal transfer
- Reverse voltage protection
- Used with ALRS Handset
- Link Switch On/Off From Hand Held
- Internal Antenna-No external parts
- Full O’ring sealing eliminates water ingress problems
- 1000 plus hours use on 3 x AA batteries
- Water proof hard case
- Capacities of 5 to 500 Tonne
- Mil spec connectors
- Fully Anodized finish
- Unmatched battery life
- Load Bobbin
- Internal Antenna
- Robust anti-rotation
- Industry leading wireless range
- Lightweight
- Audible overload alarm
- No cables
- Capacities of 6.5 to 1000 Tonne
- Certificate of calibration
- Selectable units in (Tonne, kg, lbs and US Ton)
- 500m operating range
- 5 point linearization
- On/off from handheld
- Calibration via hand held
- Built in overload count
- 400 or 900 MHz
- Digital output for data logging
- 6 digit LCD display
- 1000 plus hours use with 4 x AA batteries
Technical Information

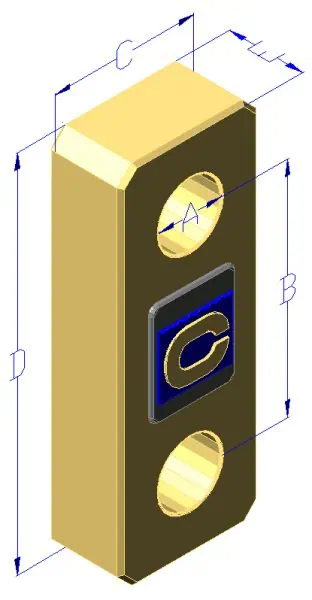

LOAD CELLS WIRELESS and CABLED
| MODEL | Capacity | A (ø) | B | C | D | E | Weight |
| Tonne (Metric) | mm | mm | mm | mm | mm | kg | |
| in | in | in | in | in | lbs | ||
| JCM-5LC | 5.0 | 26 | 226 | 130 | 293 | 39 | 2.6 |
| 1.02 | 8.89 | 5.11 | 11.53 | 1.53 | 5.7 | ||
| JCM-12.5LC | 12.5 | 44 | 226 | 130 | 324 | 50 | 5.3 |
| 1.73 | 8.89 | 5.11 | 12.75 | 1.96 | 11.7 | ||
| JCM-25LC | 25.0 | 55 | 290 | 136 | 430 | 61 | 7.1 |
| 2.16 | 11.41 | 5.35 | 16.92 | 2.40 | 15.7 | ||
| JCM-35LC | 35.0 | 61 | 290 | 140 | 440 | 70 | 9.4 |
| 2.40 | 11.41 | 5.51 | 17.32 | 2.75 | 20.7 | ||
| JCM-50LC | 50.0 | 75 | 304 | 170 | 480 | 85 | 15.0 |
| 2.95 | 11.96 | 6.69 | 18.89 | 3.34 | 33.0 | ||
| JCM-75LC | 75.0 | 86 | 306 | 190 | 500 | 100 | 17.0 |
| 3.38 | 12.04 | 7.48 | 19.68 | 3.93 | 37.5 | ||
| JCM-100LC | 100 | 100 | 346 | 194 | 556 | 124 | 26.1 |
| 3.93 | 13.62 | 7.63 | 21.88 | 4.88 | 57.5 | ||
| JCM-150LC | 150 | 120 | 396 | 244 | 680 | 127 | 47.1 |
| 4.72 | 15.59 | 9.60 | 26.77 | 5.00 | 104 | ||
| JCM-200LC | 200 | 132 | 442 | 280 | 784 | 150 | 79.0 |
| 5.19 | 17.40 | 11.02 | 30.86 | 5.90 | 174 | ||
| JCM-300LC | 300 | 160 | 582 | 400 | 1000 | 150 | TBA |
| 6.29 | 22.91 | 15.74 | 39.37 | 5.90 | TBA | ||
| JCM-400LC | 400 | 180 | 614 | 400 | 1098 | 200 | TBA |
| 7.08 | 24.17 | 15.74 | 43.22 | 7.87 | TBA | ||
| JCM-500LC | 500 | 190 | 600 | 490 | 1100 | 200 | TBA |
| 7.48 | 23.62 | 19.29 | 43.30 | 7.87 | TBA |

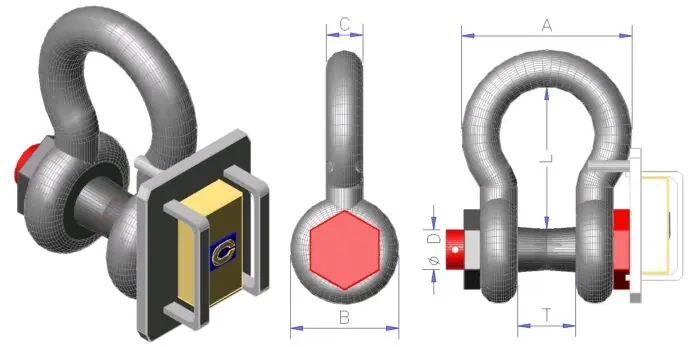

TELEMETRY LOAD SHACKLE WIRELESS and CABLED
| MODEL | Capacity | A | B | C | D | L | T |
| Tonne (Metric) | mm | mm | mm | mm | mm | mm | |
| in | in | in | in | in | in | ||
| LS-6.5 | 6.5 | 100 | 54 | 22 | 25.4 | 84 | 38 |
| 3.94 | 2.13 | .87 | 1.00 | 3.31 | 1.50 | ||
| LS-12 | 12.0 | 146 | 76 | 32 | 35 | 119 | 50 |
| 5.75 | 2.99 | 1.26 | 1.38 | 4.69 | 1.97 | ||
| LS-25 | 25.0 | 171 | 106 | 45 | 50 | 146 | 73 |
| 6.73 | 4.17 | 177 | 1.97 | 5.75 | 2.87 | ||
| LS-35 | 35.0 | 197 | 127 | 51 | 57 | 187 | 83 |
| 7.76 | 5.00 | 2.01 | 2.24 | 7.36 | 3.27 | ||
| LS-55 | 55.0 | 311 | 142 | 68 | 70 | 267 | 105 |
| 12.24 | 5.59 | 2.68 | 2.76 | 10.51 | 4.13 | ||
| LS-85 | 85.0 | 339 | 159 | 70 | 73 | 260 | 105 |
| 13.35 | 6.26 | 2.76 | 2.87 | 10.24 | 4.13 | ||
| LS-120 | 120 | 420 | 203 | 92 | 95 | 350 | 130 |
| 16.54 | 7.99 | 3.62 | 3.74 | 13.78 | 5.12 | ||
| LS-150 | 150 | 460 | 229 | 100 | 108 | 371 | 140 |
| 18.11 | 9.02 | 3.94 | 4.25 | 14.61 | 5.51 | ||
| LS-250 | 250 | 625 | 305 | 115 | 127 | 508 | 215 |
| 24.61 | 12.01 | 4.53 | 5.00 | 20.00 | 8.46 |
