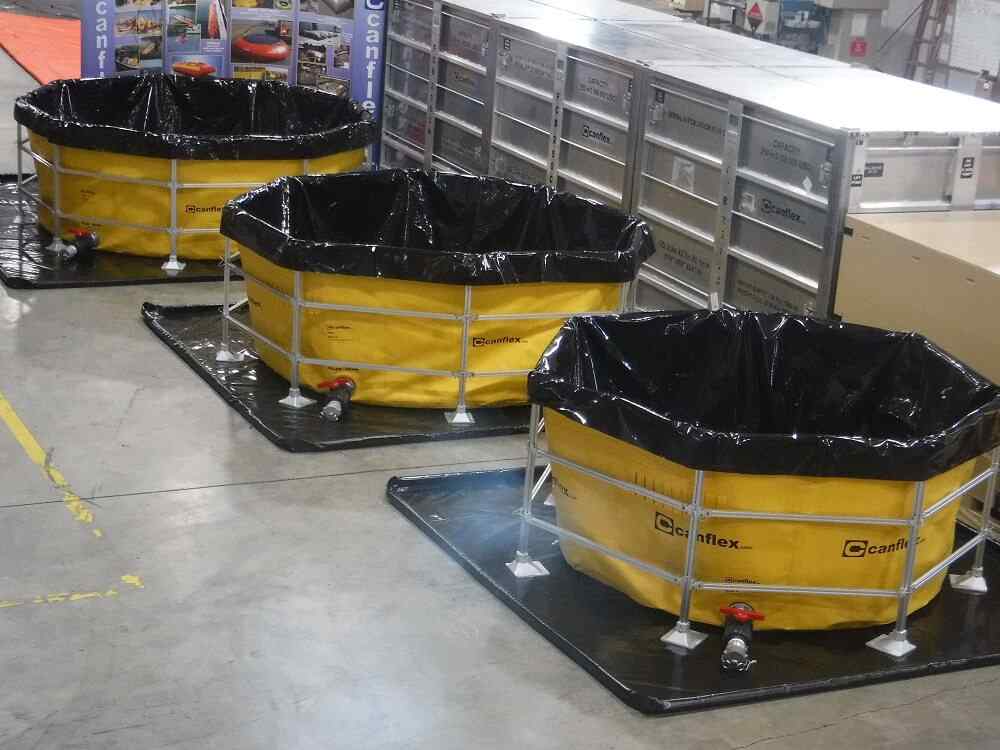

Collapsible Modular Frame Tanks
The Canflex “Collapsible Modular Frame Tanks / Fast Tanks” are foldable tanks for bulk liquid storage with an easily assembled (6061-T6) aluminum structure with liner, used for firefighting, spill recovery, and disaster relief efforts.
A wide range of special, government-approved, material coated liners are available for these tanks, which can be used in many environments. They are ideal for the storage of drinking water, fuels / hydrocarbons, waste products, and other essential fluids for populations impacted by tsunamis, earthquakes, etc.
The fast tanks stable design allows it to be used on virtually any landscape. Due to the “modular” design of the tank, one set of frames can be used for many different size tanks. All that is needed are liners of the desired capacity. This characteristic not only makes this an extremely versatile product but also more economical for the client.
Some of the Fast Tanks features are:
- Rapid emergency response
- Modular design
- Connections are 180 degrees apart, but can be located anywhere on the tank at the client’s request
- Replaceable inner liner (optional)
- Top cover to prevent fluid contamination (optional)
- Custom Clip-Lok style storage / shipping crate
Applications include, but not limited to:
- Spill Response
- HAZMAT Operations
- Military Operations
- Potable (drinking) Water Tank
- Disaster Relief *
- Forestry Service
- Firefighting
- Chemical Storage
- Wastewater
- Aquaculture Farming
- Remote Storage
- Fuel Storage
- Gray Water Storage
- Portable Water Tank
- Remediation Projects
* Transport and storage of essential fluids to populations effected by tsunamis, earthquakes, etc …
Capacities range from 2 to 189 m³ (530 to 50,000 gallons).

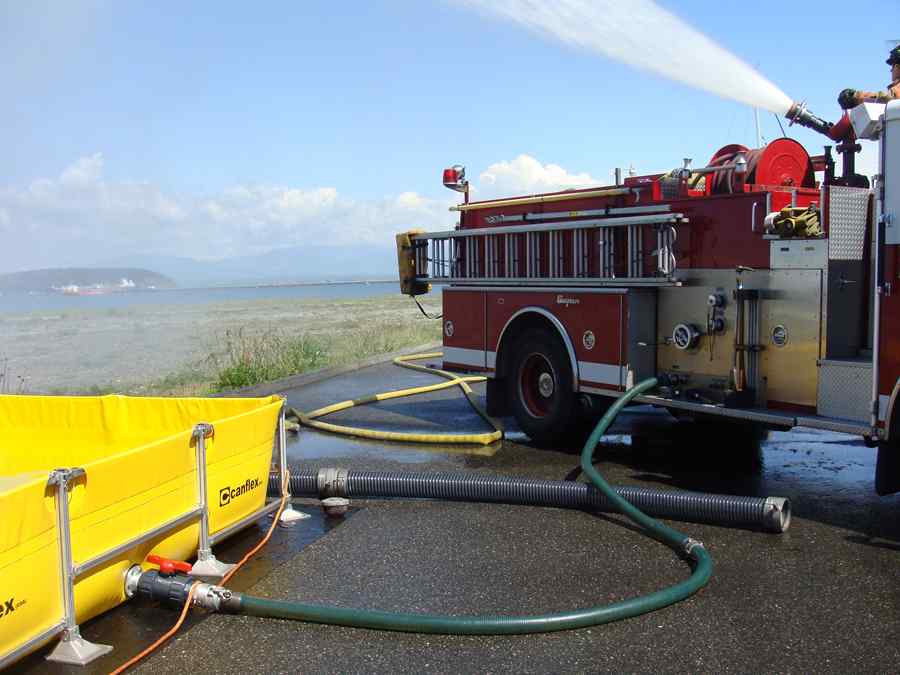

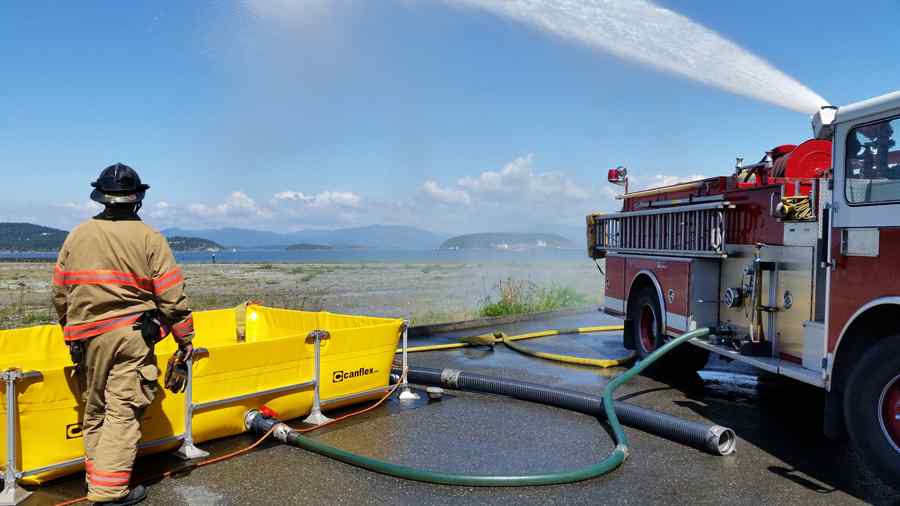

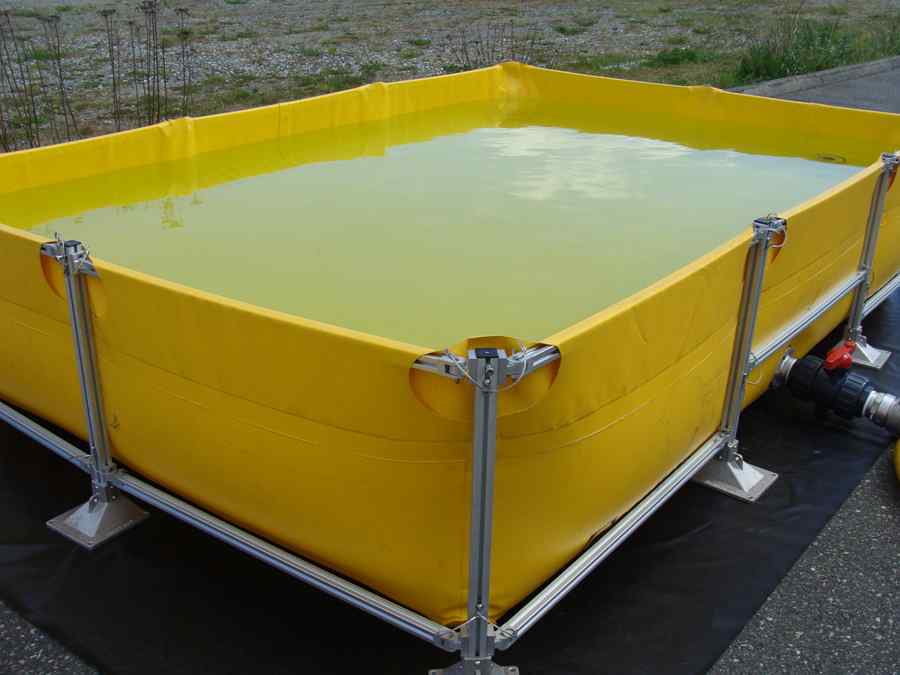

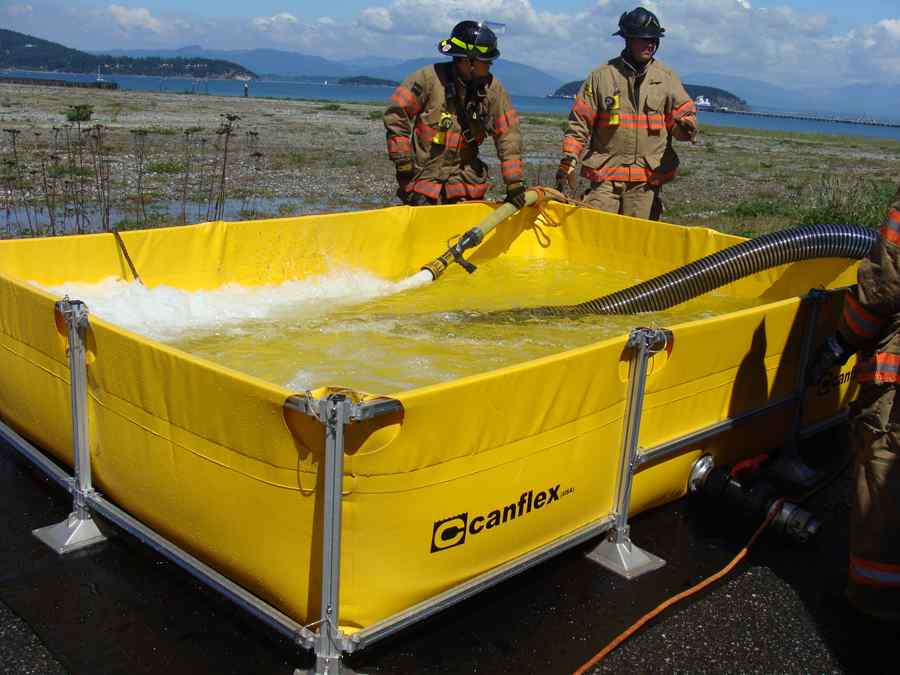

Low Profile Frame Tank / Fast Tank

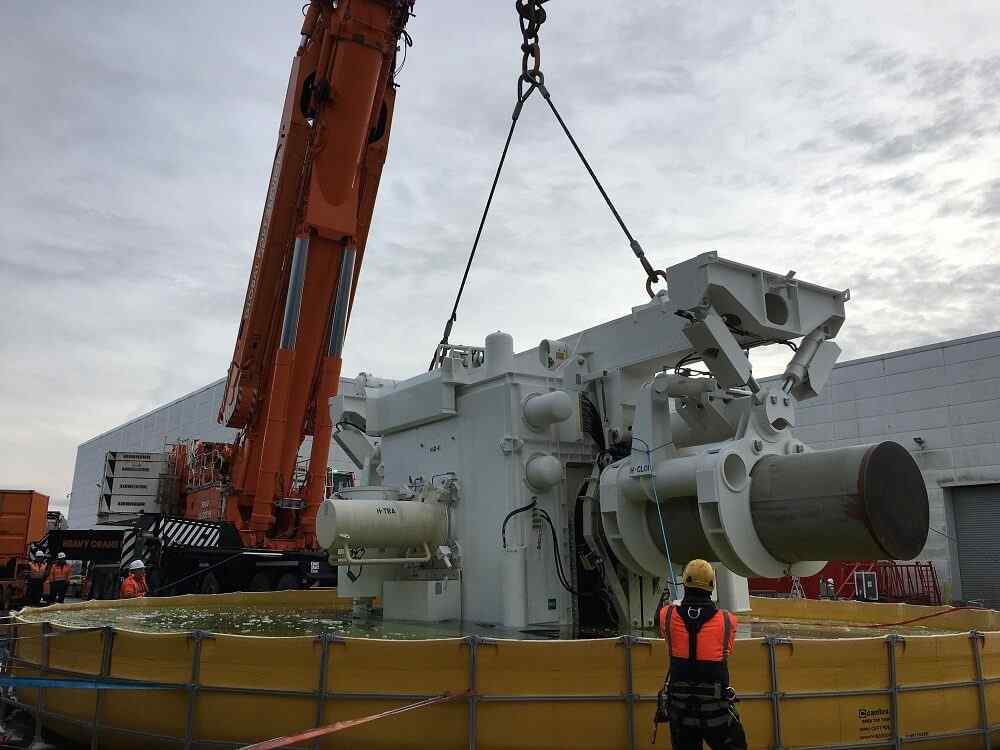

Frame Tanks / Fast Tanks
Technical Information
CANFLEX “LOW PROFILE” FRAME / FAST STYLE OPEN TOP TANKS
| Model | Capacity | Length | Width | Height | Dry Weight without accessories | # Frame sets / Configuration |
| m³ / Barrels | m | m | cm | kg | ||
|
USG |
ft |
ft |
in |
lbs |
||
| LP/FT-2CM | 2.0 / 12.6 | 2.37 | 1.18 |
73.6 |
52 | 6 / (2X1) |
| 530 | 7.77 | 3.89 | 29 | 115 | ||
| LP/FT-4CM |
3.8 / 23.8 |
2.37 |
2.37 |
73.6 |
77 |
8 / (2X2) |
|
1000 |
7.77 |
7.77 | 29 |
170 |
||
| LP/FT-6CM |
5.7 / 35.7 |
3.55 |
2.37 |
73.6 |
118 |
10 / (3X2) |
|
1,500 |
11.66 |
7.77 |
29 |
260 |
||
| LP/FT-8CM | 7.5 / 47.6 | 4.74 | 2.37 | 73.6 | 134 | 12 / (4X2) |
|
2,000 |
15.54 |
7.77 |
29 |
295 |
||
| LP/FT-8CM-S | 7.5 / 47.6 | 3.55 | 3.55 | 73.6 | 134 | 12 / (3X3) |
|
2,000 |
11.66 |
11.66 |
29 |
295 |
||
| LP/FT-11CM | 11.3 / 71.4 | 4.74 | 3.55 | 73.6 | 159 | 14 / (4X3) |
|
3,000 |
15.54 |
11.66 |
29 |
350 |
||
| LP/FT-15CM | 15.0 / 95.2 | 5.92 | 3.55 | 73.6 | 181 | 16 / (5X3) |
|
4,000 |
19.43 |
11.66 |
29 |
400 |
||
| LP/FT-15CM-S | 15.0 / 95.2 | 4.74 | 4.74 | 73.6 | 181 | 16 / (4X4) |
|
4,000 |
15.54 |
15.54 |
29 |
400 |
||
| LP/FT-20CM | 19.0 / 119 | 5.92 | 4.74 | 73.6 | 193 | 18 / (5X4) |
|
5,000 |
19.43 |
15.54 |
29 |
425 |
*All LP/FT “Low Profile Frame Tanks” come with 2 x 3″ NPT connections

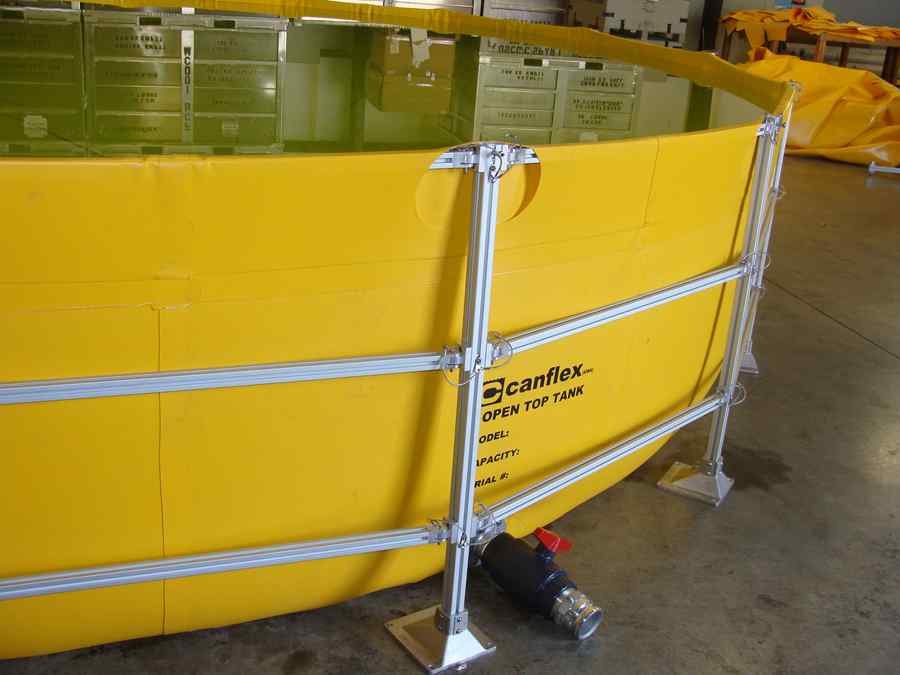

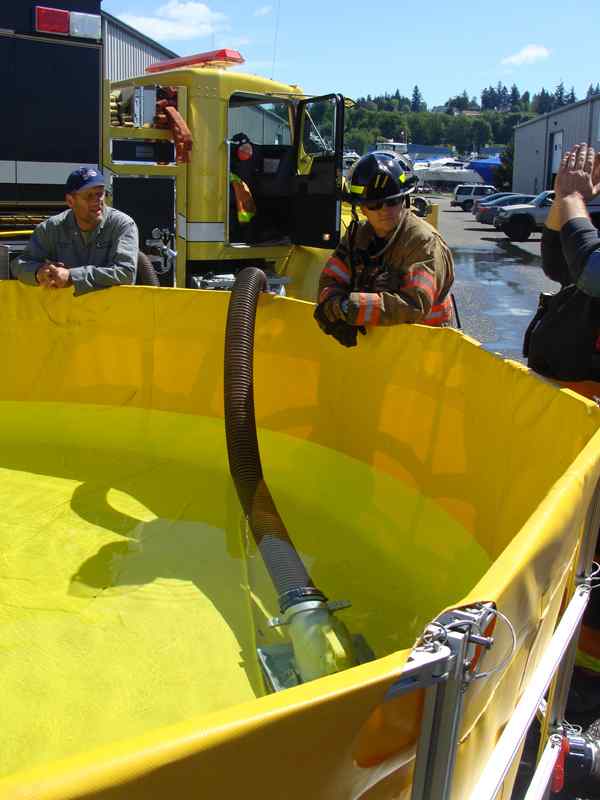

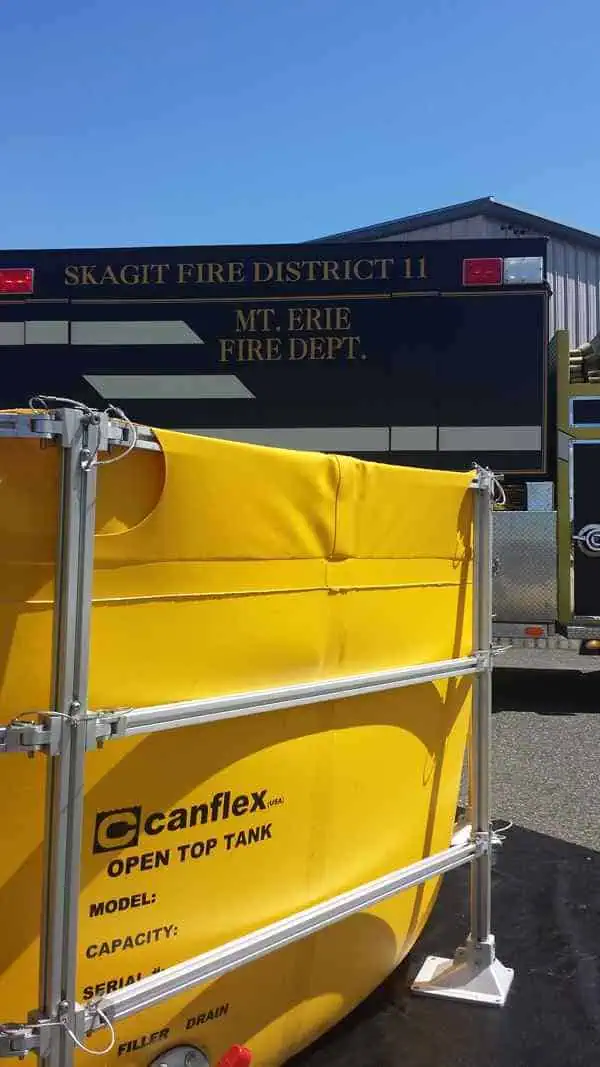

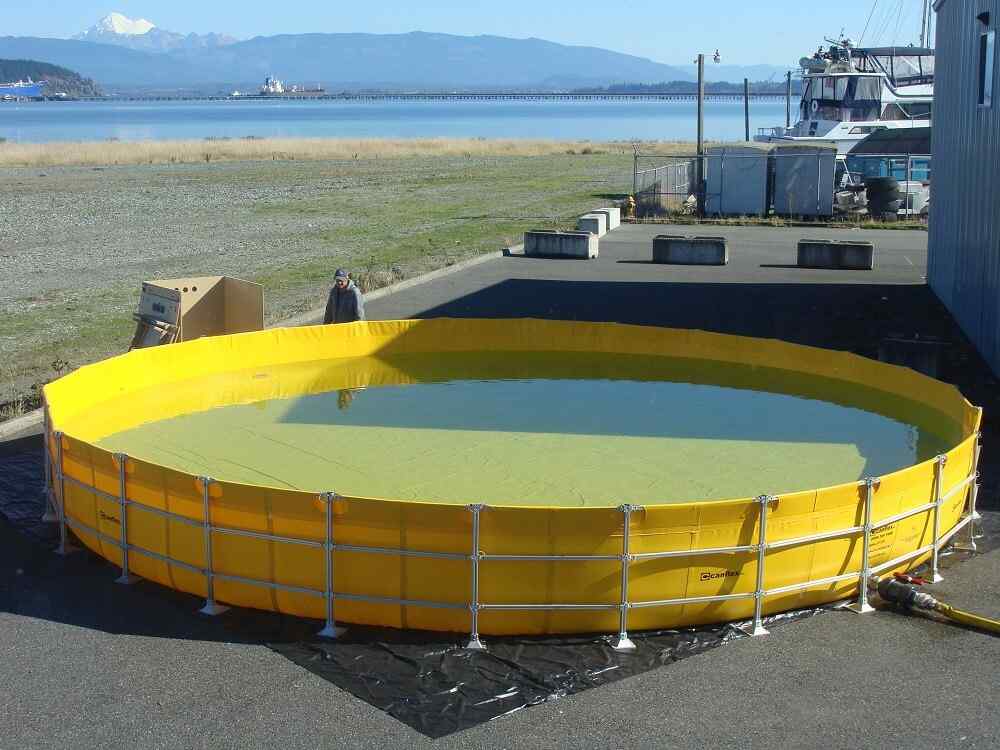

CANFLEX FRAME / FAST STYLE OPEN TOP TANKS
| Model | Capacity | Max. Diameter | Height | # of Sides (Frame Sets) |
Dry Weight without accessories | Fill/Offload connections |
| m³ / Barrels | m | m | kg | |||
|
USG |
ft |
ft |
lbs |
|||
| CF/FT-2CM | 2.0 / 12.6 | 1.95 | 1.20 | 5 | 82 | 1 x 2″ NPT |
| 530 | 6.50 | 3.90 | 180 | |||
| CF/FT-3CM | 3.0 / 18.9 | 2.30 | 1.20 | 6 | 86 | 1 x 2″ NPT |
|
800 |
7.50 |
3.90 |
190 |
|||
| CF/FT-4CM | 4.0 / 25.1 | 2.61 | 1.20 | 7 | 96 | 1 x 2″ NPT |
|
1,000 |
8.60 |
3.90 |
210 |
|||
| CF/FT-6CM | 6.0 / 37.7 | 3.0 | 1.20 | 8 | 127 | 1 x 2″ NPT |
|
1,500 |
10.0 |
3.90 |
280 |
|||
| CF/FT-8CM | 8.0 / 50.3 | 3.38 | 1.20 | 9 | 163 | 1 x 2″ NPT |
|
2,100 |
11.1 |
3.90 |
360 |
|||
| CF/FT-10CM-E | 10.0 / 62.9 | 3.81 | 1.20 | 10 | 195 | 1 x 2″ NPT |
|
2,650 |
12.50 |
3.90 |
430 |
|||
| CF/FT-10CM | 10.0 / 62.9 | 3.81 | 1.20 | 10 | 195 | 1 x 3″ NPT |
|
2,650 |
12.50 |
3.90 |
430 |
|||
| CF/FT-12CM | 13.2 / 83 | 4.20 | 1.20 | 11 | 206 | 1 x 3″ NPT |
|
3,500 |
13.8 |
3.90 |
455 |
|||
| CF/FT-15CM | 15.0 / 94.3 | 4.50 | 1.20 | 12 | 218 | 1 x 3″ NPT |
|
4,000 |
15.0 |
3.90 |
480 |
|||
| CF/FT-20CM | 20.0 / 125.8 | 5.30 | 1.20 | 14 | 255 | 1 x 3″ NPT |
|
5,300 |
17.50 |
3.90 |
560 |
|||
| CF/FT-25CM | 25.0 / 157.2 | 5.65 | 1.20 | 15 | 270 | 1 x 3″ NPT |
|
6,600 |
18.50 |
3.90 |
600 |
|||
| CF/FT-30CM | 30 / 188.7 | 6.0 | 1.20 | 16 | 290 | 2 x 3″ NPT |
|
8,000 |
20.0 |
3.90 |
640 |
|||
| CF/FT-38CM | 38 / 239 | 6.78 | 1.20 | 18 | 306 | 2 x 3″ NPT |
|
10,000 |
22.2 |
3.90 |
675 |
|||
| CF/FT-50CM | 50 / 314.5 | 8.30 | 1.20 | 22 | 400 | 2 x 3″ NPT |
|
13,200 |
27.10 |
3.90 |
880 |
|||
| CF/FT-80CM | 80 / 503.2 | 10.0 | 1.20 | 26 | 485 | 2 x 3″ NPT |
|
21,000 |
32.20 |
3.90 |
1,070 |
|||
| CF/FT-100CM | 100 / 629 | 11.0 | 1.20 | 29 | 567 | 3 x 3″ NPT |
|
26,500 |
36.0 |
3.90 |
1,250 |
|||
| CF/FT-150CM | 150 / 943.5 | 13.60 | 1.20 | 36 | 825 | 3 x 3″ NPT |
|
40,000 |
44.60 |
3.90 |
1,820 |
|||
| CF/FT-200CM | 200 / 1258 | 15.0 | 1.20 | 40 | 950 | 3 x 3″ NPT |
|
52,000 |
49.50 |
3.90 |
2,100 |
