Secondary Fluid Containment Berms
Rapid-Deployment Containment for Decontamination and Spill Control

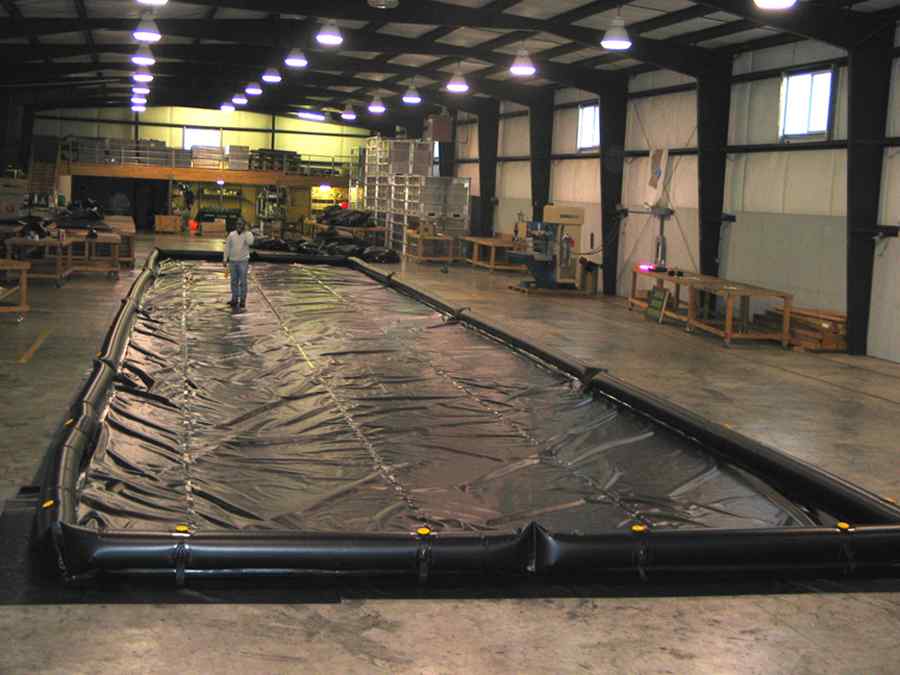

The Canflex Decontamination Cleaning Stations are multi-purpose containment solutions designed for wash-down, fluid decontamination, and secondary spill containment. Engineered for rapid deployment, these inflatable berms provide a secure, leak-proof barrier for equipment, vehicles, and personnel in industrial, environmental, and emergency response applications.
Effective Containment for Critical Operations
✔ Dual-Purpose Functionality – Serves as both a decontamination station and secondary spill containment for hazmat operations, oil spill response, and industrial cleanup.
✔ Compatible with Various Liquids – Designed to handle petroleum products, industrial chemicals, wastewater, liquid food products, and more.
✔ Inflatable, Self-Rising Walls – Heavy-duty air chambers ensure quick setup with minimal effort using a high-volume hand pump.
✔ Heavy-Duty Materials – Constructed from chemical-resistant, high-strength coated fabrics for durability in harsh environments.
✔ Compact & Portable – Easily folded, stored, and transported, making it ideal for on-site and remote operations.
The Canflex Decontamination Cleaning Stations offer a flexible, fast-response solution for fluid containment and environmental protection.
Some of the Decontamination Cleaning Stations features are:

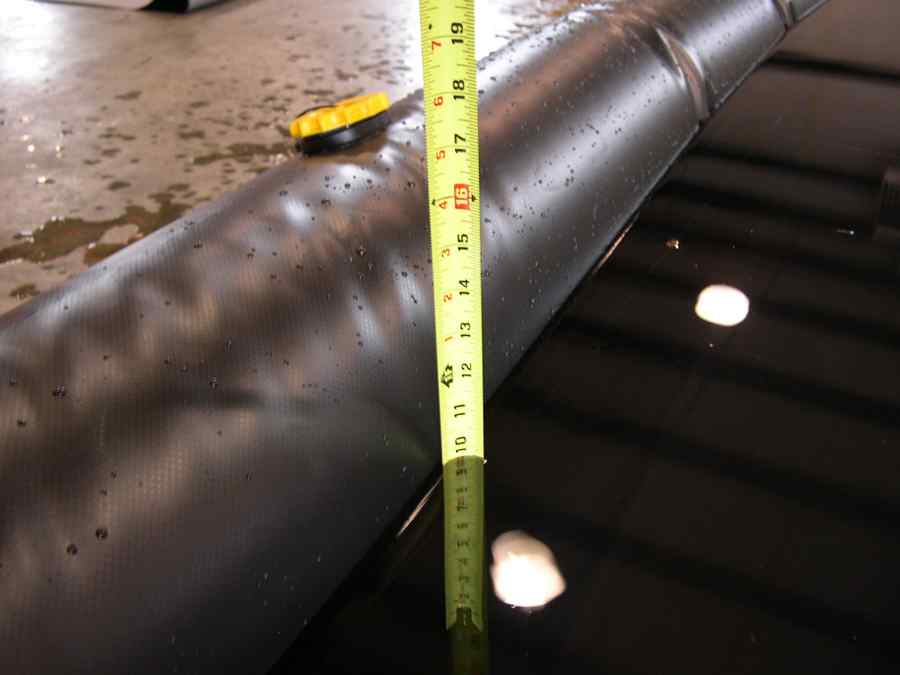

- Air filled chambers making up the side walls are available in 12″ thru 36″ in diameter
- Each chamber has two Munson valves for inflation and deflation
- Each air chamber is equipped with a 1 PSI automatic relief valve to prevent over inflation
- Corner drain available in sizes 2″ thru 6″

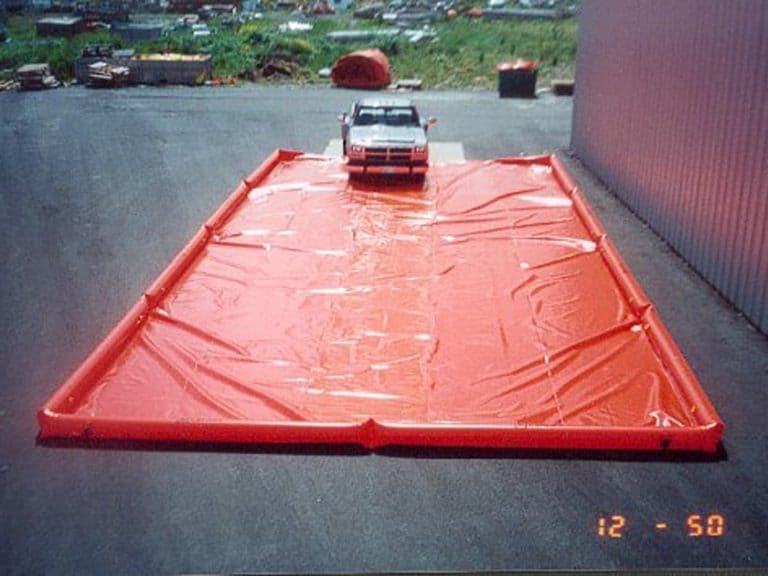

- Durable fabrics allow vehicles and machinery to be driven in and out of containment berm repeatedly
- Replaceable liners for easy maintenance and longevity (optional)
- Handles located around perimeter for easy setup and packing
- Tie Downs with welded PVC grommets situated around the berm perimeter (optional)
- Easily placed under valves and fittings, vehicles or machinery
- Totally reusable and compact
- Can be easily cleaned, folded and stored for reuse
Applications include, but not limited to:
- Oil Spill Response
- Environmental Operations

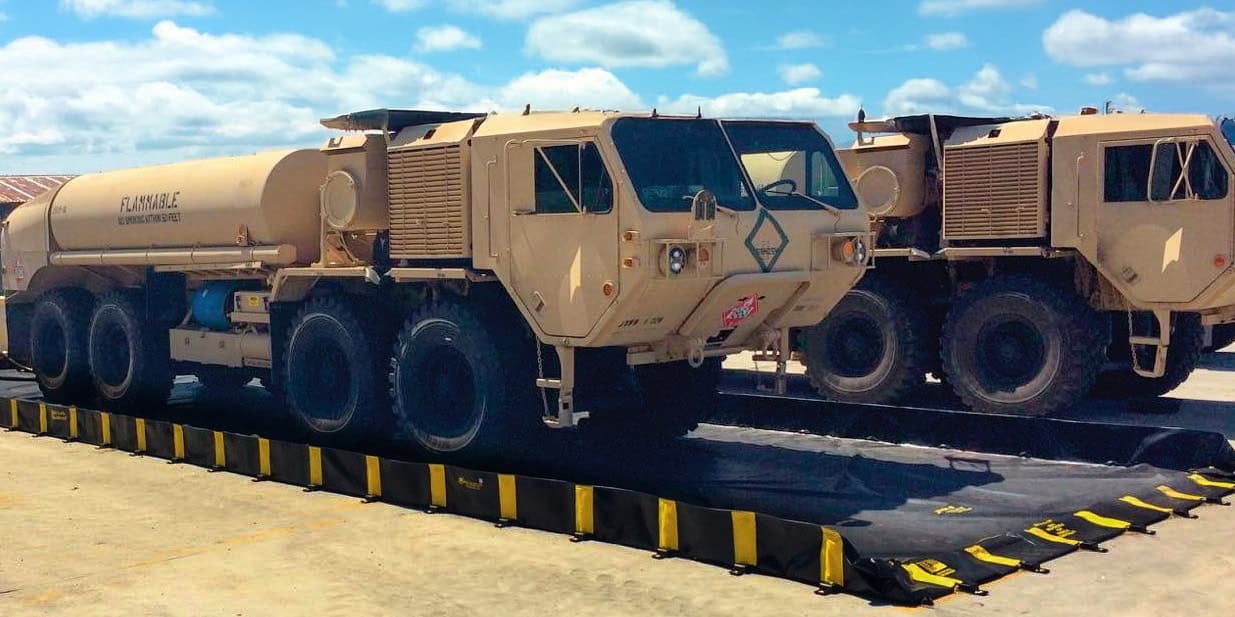

- Military Operations
- Decontamination
- Tank Farms
- Fracking Sites
- Cleaning / Deicing
- Vehicle / Equipment Repair
All sizes are available
- Fast Response
- Mining Locations
- Secondary Containment
- Tank Containment
- Vehicle Containment
- Homeland Security
- Remediation Projects
CANFLEX FAST BERM 12″
| Model | Inside Dimensions (L × W × H) |
Outside Dimensions (L × W × H) |
Capacity | Dry Weight |
|---|---|---|---|---|
| FB-2×2×1 | 2 × 2 ft × 12 in 0.6 × 0.6 m × 30.5 cm |
3 × 3 ft × 12 in 0.9 × 0.9 m × 30.5 cm |
30 USG 113.6 L |
12 lb / 5.5 kg |
| FB-3×2×1 | 3 × 2 ft × 12 in 0.91 × 0.6 m × 30.5 cm |
4 × 3 ft × 12 in 1.2 × 0.9 m × 30.5 cm |
45 USG 170.4 L |
12 lb / 5.5 kg |
| FB-3×3×1 | 3 × 3 ft × 12 in 0.91 × 0.91 m × 30.5 cm |
4 × 4 ft × 12 in 1.2 × 1.2 m × 30.5 cm |
68 USG 257.5 L |
16 lb / 7.3 kg |
| FB-4×4×1 | 4 × 4 ft × 12 in 1.21 × 1.21 m × 30.5 cm |
5 × 5 ft × 12 in 1.5 × 1.5 m × 30.5 cm |
120 USG 454.3 L |
21 lb / 9.6 kg |
| FB-4×5×1 | 5 × 4 ft × 12 in 1.52 × 1.21 m × 30.5 cm |
6 × 5 ft × 12 in 1.8 × 1.5 m × 30.5 cm |
150 USG 567.9 L |
23 lb / 10.5 kg |
| FB-4×6×1 | 6 × 4 ft × 12 in 1.84 × 1.21 m × 30.5 cm |
7 × 5 ft × 12 in 2.1 × 1.5 m × 30.5 cm |
180 USG 681.4 L |
26 lb / 11.8 kg |
| FB-4×7×1 | 7 × 4 ft × 12 in 2.13 × 1.21 m × 30.5 cm |
8 × 5 ft × 12 in 2.4 × 1.5 m × 30.5 cm |
210 USG 795 L |
28 lb / 12.7 kg |
| FB-6×6×1 | 6 × 6 ft × 12 in 1.82 × 1.82 m × 30.5 cm |
7 × 7 ft × 12 in 2.1 × 2.1 m × 30.5 cm |
270 USG 1,022 L |
30 lb / 13.6 kg |
| FB-8×8×1 | 8 × 8 ft × 12 in 2.43 × 2.43 m × 30.5 cm |
9 × 9 ft × 12 in 2.7 × 2.7 m × 30.5 cm |
479 USG 1,813 L |
43 lb / 19.6 kg |
| FB-10×10×1 | 10 × 10 ft × 12 in 3.04 × 3.04 m × 30.5 cm |
11 × 11 ft × 12 in 3.4 × 3.4 m × 30.5 cm |
749 USG 2,835 L |
52 lb / 23.6 kg |
| FB-12×12×1 | 12 × 12 ft × 12 in 3.65 × 3.65 m × 30.5 cm |
13 × 13 ft × 12 in 4.0 × 4.0 m × 30.5 cm |
1,078 USG 4,080 L |
61 lb / 27.7 kg |
CANFLEX CONTAINMENT BERM 24″
| Model | Inside Dimensions (L × W × H) |
Outside Dimensions (L × W × H) |
Capacity | Dry Weight |
|---|---|---|---|---|
| SCB-10×10×2 | 10 × 10 ft × 24 in 3.04 × 3.04 m × 61 cm |
12 × 12 ft × 24 in 3.7 × 3.7 m × 61 cm |
1,497 USG 5.70 m³ |
92 lb / 42 kg |
| SCB-10×15×2 | 15 × 10 ft × 24 in 4.57 × 3.04 m × 61 cm |
17 × 12 ft × 24 in 5.2 × 3.7 m × 61 cm |
2,245 USG 8.50 m³ |
118 lb / 54 kg |
| SCB-10×20×2 | 20 × 10 ft × 24 in 6.09 × 3.04 m × 61 cm |
22 × 12 ft × 24 in 6.7 × 3.7 m × 61 cm |
2,993 USG 11.40 m³ |
142 lb / 65 kg |
| SCB-20×20×2 | 20 × 20 ft × 24 in 6.09 × 6.09 m × 61 cm |
22 × 22 ft × 24 in 6.7 × 6.7 m × 61 cm |
5,986 USG 22.70 m³ |
225 lb / 102 kg |
| SCB-20×30×2 | 30 × 20 ft × 24 in 9.14 × 6.09 m × 61 cm |
32 × 22 ft × 24 in 9.8 × 6.7 m × 61 cm |
8,979 USG 34.00 m³ |
300 lb / 136 kg |
| SCB-20×40×2 | 40 × 20 ft × 24 in 12.19 × 6.09 m × 61 cm |
42 × 22 ft × 24 in 12.8 × 6.7 m × 61 cm |
11,972 USG 45.40 m³ |
375 lb / 171 kg |
| SCB-20×50×2 | 50 × 20 ft × 24 in 15.24 × 6.09 m × 61 cm |
52 × 22 ft × 24 in 15.8 × 6.7 m × 61 cm |
14,964 USG 56.70 m³ |
451 lb / 205 kg |
| SCB-20×60×2 | 60 × 20 ft × 24 in 18.28 × 6.09 m × 61 cm |
62 × 22 ft × 24 in 18.9 × 6.7 m × 61 cm |
17,957 USG 68.00 m³ |
530 lb / 241 kg |
| SCB-30×40×2 | 40 × 30 ft × 24 in 12.19 × 9.14 m × 61 cm |
42 × 32 ft × 24 in 12.8 × 9.8 m × 61 cm |
17,957 USG 68.00 m³ |
530 lb / 241 kg |
| SCB-30×50×2 | 50 × 30 ft × 24 in 15.24 × 9.14 m × 61 cm |
52 × 32 ft × 24 in 15.8 × 9.8 m × 61 cm |
22,446 USG 85.00 m³ |
605 lb / 275 kg |
| SCB-30×60×2 | 60 × 30 ft × 24 in 18.28 × 9.14 m × 61 cm |
62 × 32 ft × 24 in 18.9 × 9.8 m × 61 cm |
26,936 USG 102.00 m³ |
700 lb / 318 kg |
| SCB-40×50×2 | 50 × 40 ft × 24 in 15.24 × 12.19 m × 61 cm |
52 × 42 ft × 24 in 15.8 × 12.8 m × 61 cm |
29,928 USG 113.30 m³ |
745 lb / 339 kg |
| SCB-40×60×2 | 60 × 40 ft × 24 in 18.28 × 12.19 m × 61 cm |
62 × 42 ft × 24 in 18.9 × 12.8 m × 61 cm |
35,914 USG 136.00 m³ |
870 lb / 396 kg |
| SCB-50×50×2 | 50 × 50 ft × 24 in 15.24 × 15.24 m × 61 cm |
52 × 52 ft × 24 in 15.8 × 15.8 m × 61 cm |
37,410 USG 141.70 m³ |
900 lb / 409 kg |
| SCB-50×60×2 | 60 × 50 ft × 24 in 18.28 × 15.24 m × 61 cm |
62 × 52 ft × 24 in 18.9 × 15.8 m × 61 cm |
44,892 USG 170.00 m³ |
1,055 lb / 480 kg |
| SCB-60×60×2 | 60 × 60 ft × 24 in 18.28 × 18.28 m × 61 cm |
62 × 62 ft × 24 in 18.9 × 18.9 m × 61 cm |
53,871 USG 204.00 m³ |
1,220 lb / 555 kg |
CANFLEX CONTAINMENT BERM 36″
| Model | Inside Dimensions (L × W × H) |
Outside Dimensions (L × W × H) |
Capacity | Dry Weight |
|---|---|---|---|---|
| SCB-10×10×3 | 10 × 10 ft × 36 in 3.04 × 3.04 m × 91.5 cm |
13 × 13 ft × 36 in 4 × 4 m × 91.5 cm |
2,245 USG 8.50 m³ |
120 lb / 55 kg |
| SCB-10×15×3 | 15 × 10 ft × 36 in 4.57 × 3.04 m × 91.5 cm |
18 × 13 ft × 36 in 5.5 × 4 m × 91.5 cm |
3,367 USG 12.80 m³ |
155 lb / 71 kg |
| SCB-10×20×3 | 20 × 10 ft × 36 in 6.09 × 3.04 m × 91.5 cm |
23 × 13 ft × 36 in 7 × 4 m × 91.5 cm |
4,490 USG 17.00 m³ |
185 lb / 84 kg |
| SCB-20×20×3 | 20 × 20 ft × 36 in 6.09 × 6.09 m × 91.5 cm |
23 × 23 ft × 36 in 7 × 7 m × 91.5 cm |
8,979 USG 35.00 m³ |
280 lb / 127 kg |
| SCB-20×30×3 | 30 × 20 ft × 36 in 9.14 × 6.09 m × 91.5 cm |
33 × 23 ft × 36 in 10.1 × 7 m × 91.5 cm |
13,468 USG 51.00 m³ |
370 lb / 168 kg |
| SCB-20×40×3 | 40 × 20 ft × 36 in 12.19 × 6.09 m × 91.5 cm |
43 × 23 ft × 36 in 13.1 × 7 m × 91.5 cm |
17,957 USG 68.00 m³ |
460 lb / 209 kg |
| SCB-20×50×3 | 50 × 20 ft × 36 in 15.24 × 6.09 m × 91.5 cm |
53 × 23 ft × 36 in 16.2 × 7 m × 91.5 cm |
22,446 USG 85.00 m³ |
550 lb / 250 kg |
| SCB-20×60×3 | 60 × 20 ft × 36 in 18.28 × 6.09 m × 91.5 cm |
63 × 23 ft × 36 in 19.2 × 7 m × 91.5 cm |
26,936 USG 102.00 m³ |
640 lb / 291 kg |
| SCB-30×40×3 | 40 × 30 ft × 36 in 12.19 × 9.14 m × 91.5 cm |
43 × 33 ft × 36 in 13.1 × 10.1 m × 91.5 cm |
26,936 USG 102.00 m³ |
640 lb / 291 kg |
| SCB-30×50×3 | 50 × 30 ft × 36 in 15.24 × 9.14 m × 91.5 cm |
53 × 33 ft × 36 in 16.2 × 10.1 m × 91.5 cm |
33,669 USG 127.50 m³ |
720 lb / 327 kg |
| SCB-30×60×3 | 60 × 30 ft × 36 in 18.28 × 9.14 m × 91.5 cm |
63 × 33 ft × 36 in 19.2 × 10.1 m × 91.5 cm |
40,403 USG 153.00 m³ |
830 lb / 377 kg |
| SCB-40×50×3 | 50 × 40 ft × 36 in 15.24 × 12.19 m × 91.5 cm |
53 × 43 ft × 36 in 16.2 × 13.1 m × 91.5 cm |
44,892 USG 170.00 m³ |
870 lb / 396 kg |
| SCB-40×60×3 | 60 × 40 ft × 36 in 18.28 × 12.19 m × 91.5 cm |
63 × 43 ft × 36 in 19.2 × 13.1 m × 91.5 cm |
53,871 USG 204.00 m³ |
1,005 lb / 457 kg |
| SCB-50×50×3 | 50 × 50 ft × 36 in 15.24 × 15.24 m × 91.5 cm |
53 × 53 ft × 36 in 16.2 × 16.2 m × 91.5 cm |
56,115 USG 212.50 m³ |
1,040 lb / 473 kg |
| SCB-50×60×3 | 60 × 50 ft × 36 in 18.28 × 15.24 m × 91.5 cm |
63 × 53 ft × 36 in 19.2 × 16.2 m × 91.5 cm |
67,338 USG 255.00 m³ |
1,210 lb / 550 kg |
| SCB-60×60×3 | 60 × 60 ft × 36 in 18.28 × 18.28 m × 91.5 cm |
63 × 63 ft × 36 in 19.2 × 19.2 m × 91.5 cm |
80,806 USG 305.90 m³ |
1,380 lb / 627 kg |
