Oil Spill Towable Bladder - Sea Slug

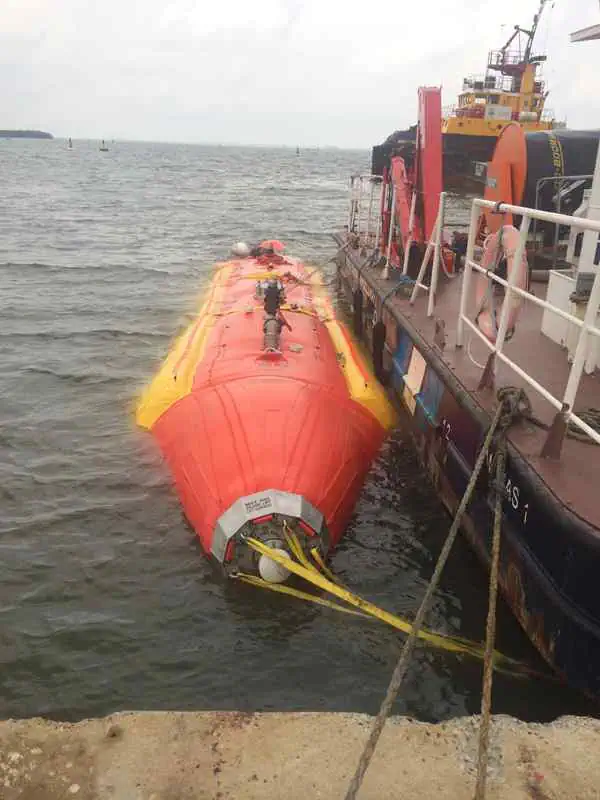

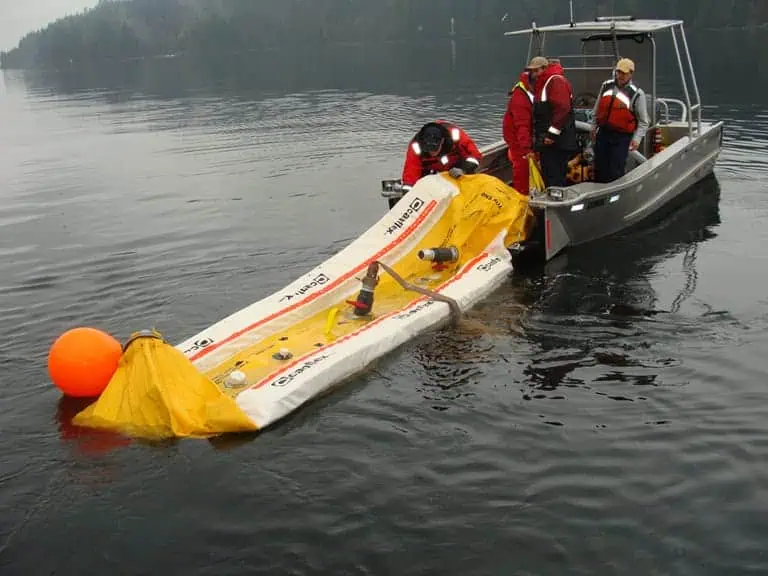

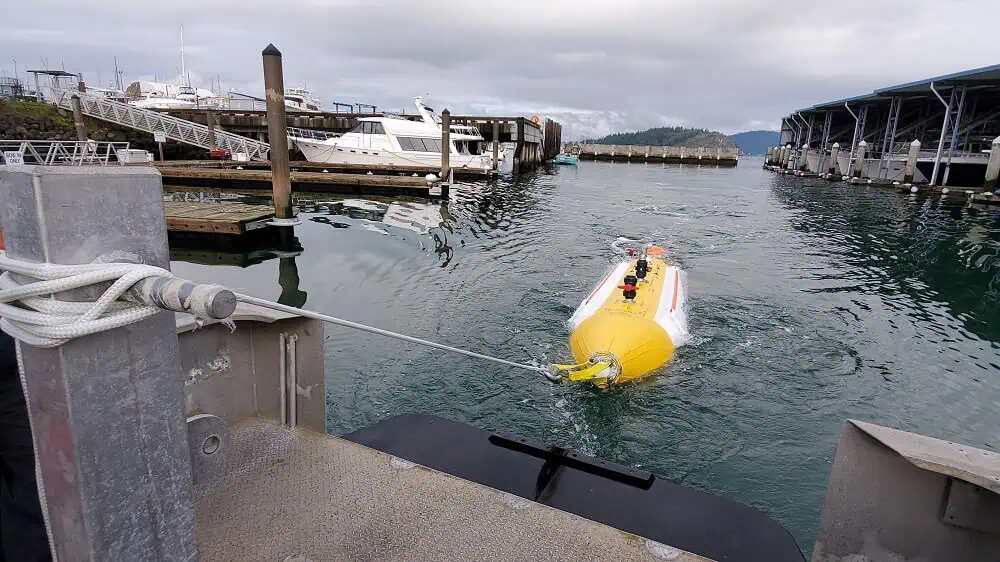

Canflex “Sea Slug” ocean towable bladders are secondary fluid tanks used for transport and storage of oil spill recovery, sewage water, and chemical spills. Utilized for environmental and oil spill response, these bladders are very rugged units with a cylindrical main body and matching conical ends, giving them great towing characteristics. Canflex uses superior engineering and design combined with the high strength coated fabrics used to manufacture its bladders. This allows the “Sea Slugs” to be used safely for training and practical applications over an unlimited time period.

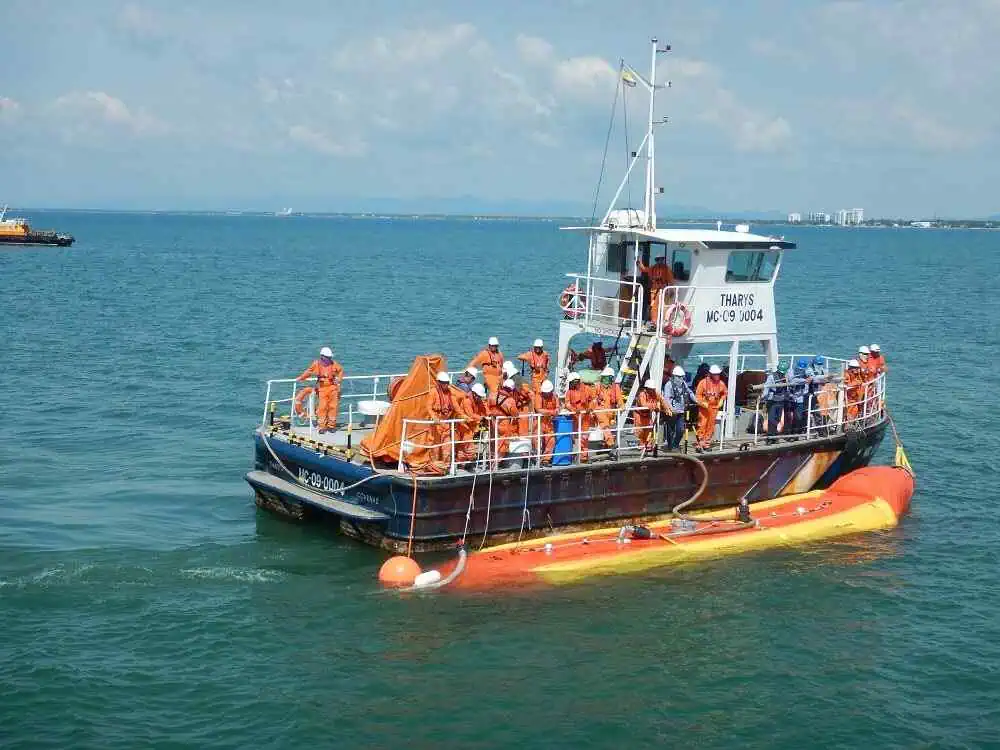

Besides manufacturing, Canflex offers maintenance services and full comprehensive training. This ensures our client is ready for an emergency response situation, where preparedness and fast response time is paramount.
Canflex constructs “Sea Slug” bladders using dielectric-high frequency RF welding. This, combined with superior coated fabrics, hardware, and engineering, makes Canflex “Sea Slug” the best ocean towable bladder available on the global market. Material strength is critical for constructing a safe ocean towable bladder to fill, tow, and off loaded repeatedly.
Some of the "Sea Slug" Ocean Towable Bladders features are:
- Reliable and fast response units
- Increases the volume/ storage capacity of your oil spill response vessels

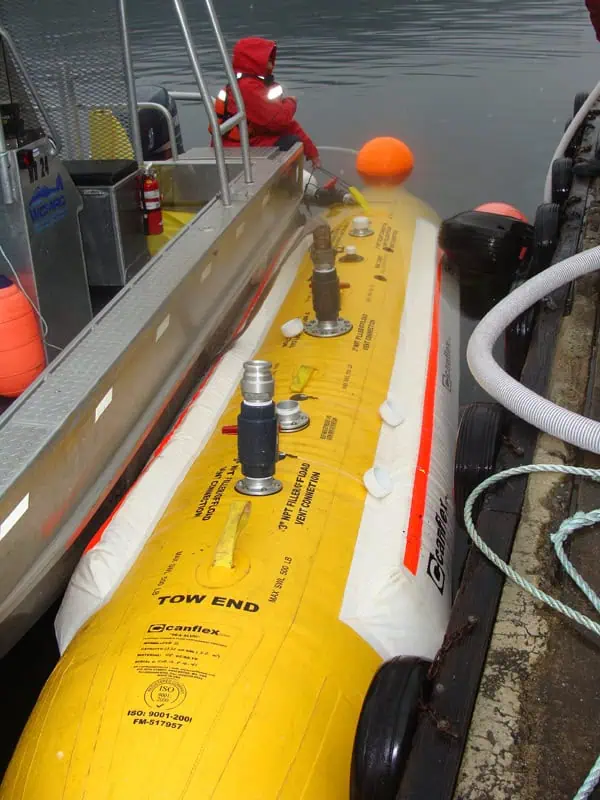

- Multiple 2″ thru 6″ connections for filling, venting, and offloading
- Fast and efficient offloading system which consists of a 12″, 16″, or 25” diameter hatch assembly for the insertion of large capacity offloading submersible pumps.
- Robust towing points also enables the bladder to be lifted vertically to aid in the final offloading process
- Coated fabric materials are many times stronger than materials used by other towable bladder manufacturers
- Available with Marine grade aluminum crate for long term storage and shipping.
- See Accessories below for more details.
Applications include, but not limited to:
- Oil Spill Recovery
- Chemical Spill Recovery
- Fuel Recovery
- Transport of waste water
- Used in all bodies of water, from oceans and seas to lakes and rivers
- Ideal for oil spill response vessels with limited storage capacity
Sea Slug – SERIES 1 – 5m³ to 30m³
Sea Slug – SERIES 2 – 50m³ to 250m³
Technical Information
| Model | Capacity | Length | Diameter | Auxiliary Floatation | Dry Weight with accessories | Draft (Full) |
| m³/Barrels | m | m | kg | kg | m | |
| USG | ft | ft | lb | lb | ft | |
| FCB-5CM | 5.0 / 31.5 | 6.2 | 1.1 | 467 | 111 | 0.98 |
| 1,320 | 20 | 3.5 | 1030 | 244 | 3.13 | |
| FCB-10CM | 10.0 / 63 | 9.2 | 1.3 | 585 | 163 | 1.16 |
| 2,640 | 30 | 4.2 | 1290 | 360 | 3.76 | |
| FCB-16CM | 16.0 / 100 | 9.1 | 1.7 | 635 | 172 | 1.52 |
| 4,300 | 29.8 | 5.6 | 1400 | 380 | 5.01 | |
| FCB-20CM | 20.0 / 126 | 9.7 | 1.8 | 572 | 295 | 1.61 |
| 5,285 | 32 | 5.9 | 1260 | 650 | 5.28 | |
| FCB-25CM | 25.0 / 157 | 11.7 | 1.8 | 603 | 313 | 2.50 |
| 6,600 | 38.5 | 5.9 | 1330 | 690 | 1.61 | |
| FCB-30CM | 30.0 / 190 | 13.7 | 1.8 | 662 | 335 | 1.61 |
| 7,925 | 44.9 | 5.9 | 1460 | 740 | 5.28 |
| Model | Capacity | Length | Diameter | Auxiliary Floatation | Dry Weight with accessories | Draft (Full) |
| m³/Barrels | m | m | kg | kg | m | |
| USG | ft | ft | lb | lb | ft | |
| FCB-50CM | 50.0 / 315 | 14.3 | 2.3 | 1764 | 818 | 2.06 |
| 13,200 | 47 | 7.5 | 3890 | 1800 | 6.71 | |
| FCB-100CM | 100 / 630 | 20 | 2.8 | 2431 | 1088 | 2.50 |
| 26,400 | 66 | 9.2 | 5360 | 2400 | 8.23 | |
| FCB-150CM | 150 / 945 | 20.4 | 3.50 | 2550 | 1200 | 3.13 |
| 39,650 | 67 | 11.3 | 5620 | 2650 | 10.11 | |
| FCB-200CM | 200 / 1260 | 22.6 | 3.70 | 2817 | 1542 | 3.31 |
| 52,850 | 74.3 | 12.2 | 6210 | 3400 | 10.91 | |
| FCB-250CM | 250 / 1575 | 27.1 | 3.70 | 3450 | 1746 | 3.31 |
| 66,000 | 88.9 | 12.2 | 7610 | 3850 | 10.91 |
