Pillow Tanks
Bulk Liquid Storage & Transport
Canflex Pillow Tanks are low-profile, collapsible bladder tanks designed for bulk liquid storage and transportation of water, fuel, chemicals, and oil spill recovery fluids. Engineered for reliable containment, these tanks are used worldwide in mining, oil & gas, remote construction, military operations, and disaster relief efforts.
Key Features & Benefits
✔ Compact & Low-Profile – Minimal footprint while maximizing storage capacity.
✔ Flexible & Portable – Collapsible for easy transport & rapid deployment.
✔ Heavy-Duty Construction – Built with reinforced, coated fabrics for durability & leak-proof performance.
✔ Environmental Protection – Prevents soil & water contamination, reduces truck traffic, and enhances site safety.
✔ Multi-Purpose Use – Compatible with potable water, hydrocarbons, chemicals, and industrial waste fluids.
Designed for tough environments and rapid deployment, Canflex Pillow Tanks deliver secure, adaptable, and cost-effective liquid storage solutions for critical fluid management needs.
Capacities range from 1 m³ to 378 m³ (250 to 100,000 US gal).
Accessories
- fluid pumping systems
- hoses

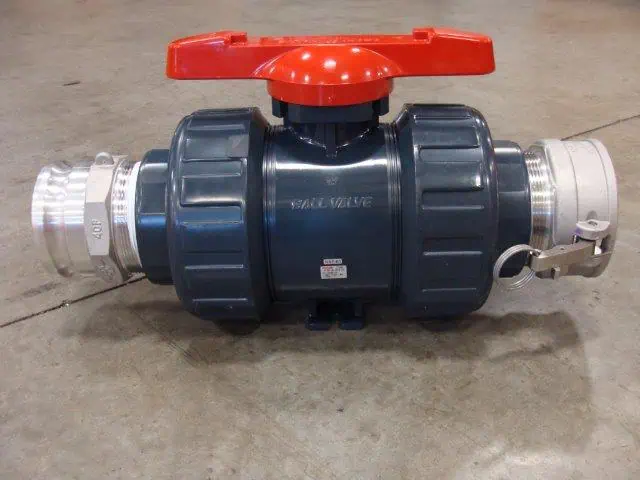

- ball valves
- webbing harness securing systems (used on truck / boat mountable pillow tanks)
- repair kit
- sun/uv cover
- fluid pumping systems
- hoses
- ball valves
- webbing harness securing systems (used on truck / boat mountable pillow tanks)
- repair kit
Some of the Pillow Tank features are:
- Fast response tanks that take just minutes to setup with limited personnel
- Handles located down the sides of the tank allow for easy setup and packing
- All fittings are appropriate for either potable water or hydrocarbons
- Can be used immediately with little to almost no site preparation required
- Lowers transportation costs where one semi-truck can transport several tanks at a time reducing costs dramatically
Applications include, but not limited to:
- Spill Response
- HAZMAT Operations
- Residential Temp. Fluid Storage
- Potable / Fresh Water Tank
- Hydraulic Fracturing “Fracking”
- Transformer Oil / Mineral Oil
- Forestry Service
- Firefighting
- Chemical Storage
- Disaster Relief *
- Aquaculture/ Farming
- Military Operations
- Remote Storage
- Fuel Storage
- Tank Farms
- Portable Water Tank
- Remediation Projects
- Water Treatment Plants
*Transport and storage of essential fluids to populations effected by tsunamis, earthquakes, etc …
Canflex Pillow Tanks
| Model | Capacity | Width | Length | Height | Dry Weight without accessories |
|---|---|---|---|---|---|
| CPT-1CM |
1.0 m³ / 6.3 bbl
250 USG
|
1.9 m
6.2 ft
|
1.9 m
6.2 ft
|
0.3 m
1.0 ft
|
30 kg
60 lbs
|
| CPT-2CM |
2.0 m³ / 12.6 bbl
500 USG
|
1.8 m
5.9 ft
|
2.7 m
9.0 ft
|
0.5 m
1.5 ft
|
36 kg
80 lbs
|
| CPT-4CM |
4.0 m³ / 24.0 bbl
1,000 USG
|
2.4 m
8.0 ft
|
3.1 m
10.1 ft
|
0.6 m
2.0 ft
|
43 kg
95 lbs
|
| CPT-5CM |
5.0 m³ / 31.5 bbl
1,320 USG
|
2.6 m
8.5 ft
|
3.0 m
10 ft
|
0.8 m
2.5 ft
|
75 kg
165 lbs
|
| CPT-6CM |
6.0 m³ / 38.0 bbl
1,500 USG
|
3.0 m
10.0 ft
|
3.0 m
10.0 ft
|
0.8 m
2.5 ft
|
85 kg
185 lbs
|
| CPT-8CM |
8.0 m³ / 50.0 bbl
2,100 USG
|
3.4 m
11.0 ft
|
3.4 m
11.0 ft
|
0.8 m
2.7 ft
|
96 kg
210 lbs
|
| CPT-10CM |
10.0 m³ / 63.0 bbl
2,640 USG
|
3.7 m
12.0 ft
|
4.1 m
13.5 ft
|
0.9 m
3.0 ft
|
104 kg
230 lbs
|
| CPT-12CM |
13.2 m³ / 83.3 bbl
3,500 USG
|
3.7 m
12.0 ft
|
4.7 m
15.5 ft
|
1.1 m
3.3 ft
|
120 kg
265 lbs
|
| CPT-15CM |
15.0 m³ / 94.0 bbl
4,000 USG
|
3.7 m
12.0 ft
|
5.33 m
17.5 ft
|
1.1 m
3.3 ft
|
137 kg
300 lbs
|
| CPT-16CM |
16.0 m³ / 100.0 bbl
4,300 USG
|
4.0 m
13 ft
|
5.3 m
17.5 ft
|
1.1 m
3.3 ft
|
145 kg
320 lbs
|
| CPT-20CM |
20.0 m³ / 126.0 bbl
5,300 USG
|
4.26 m
14 ft
|
5.3 m
17.5 ft
|
1.1 m
3.7 ft
|
155 kg
340 lbs
|
| CPT-25CM |
25.0 m³ / 157.0 bbl
6,600 USG
|
5.0 m
16.5 ft
|
5.18 m
17.0 ft
|
1.2 m
4.0 ft
|
170 kg
375 lbs
|
| CPT-30CM |
30.0 m³ / 189.0 bbl
8,000 USG
|
5.0 m
16.5 ft
|
6.5 m
21.5 ft
|
1.2 m
4.0 ft
|
200 kg
440 lbs
|
| CPT-38CM |
38.0 m³ / 239.0 bbl
10,000 USG
|
6.7 m
22.0 ft
|
6.2 m
20.3 ft
|
1.2 m
4.0 ft
|
230 kg
510 lbs
|
| CPT-50CM |
50.0 m³ / 314.5 bbl
13,200 USG
|
6.8 m
22.5 ft
|
8.0 m
26.5 ft
|
1.2 m
4.0 ft
|
273 kg
600 lbs
|
| CPT-60CM |
60.0 m³ / 377.0 bbl
15,800 USG
|
6.8 m
22.5 ft
|
9.7 m
32 ft
|
1.2 m
4.0 ft
|
305 kg
670 lbs
|
| CPT-75CM |
75.0 m³ / 472.0 bbl
20,000 USG
|
6.7 m
22.0 ft
|
8.22 m
27 ft
|
1.7 m
5.7 ft
|
330 kg
720 lbs
|
| CPT-100CM |
100.0 m³ / 629.0 bbl
26,400 USG
|
6.7 m
22.0 ft
|
10.7 m
35.0 ft
|
1.7 m
5.7 ft
|
363 kg
800 lbs
|
| CPT-150CM |
150.0 m³ / 944.0 bbl
40,000 USG
|
6.7 m
22.0 ft
|
16.1 m
53.0 ft
|
2.0 m
6.6 ft
|
545 kg
1,200 lbs
|
| CPT-200CM |
200.0 m³ / 1,258 bbl
52,800 USG
|
6.7 m
22.0 ft
|
21.0 m
69.0 ft
|
2.0 m
6.6 ft
|
727 kg
1,600 lbs
|
| CPT-250CM |
250.0 m³ / 1,572 bbl
66,000 USG
|
8.53 m
28.0 ft
|
21.0 m
69.0 ft
|
2.0 m
6.6 ft
|
910 kg
2,000 lbs
|
| CPT-380CM |
380.0 m³ / 2,390 bbl
100,000 USG
|
9.75 m
32 ft
|
27.4 m
90.0 ft
|
2.0 m
6.6 ft
|
1,210 kg
2,660 lbs
|
| CPT-500CM |
500.0 m³ / 3,145 bbl
132,000 USG
|
9.75 m
32 ft
|
36.0 m
118.0 ft
|
2.0 m
6.6 ft
|
1,590 kg
3,500 lbs
|
| CPT-800CM |
795.0 m³ / 5,000 bbl
210,000 USG
|
20.1 m
66 ft
|
28.0 m
94.0 ft
|
2.0 m
6.6 ft
|
2,720 kg
6,000 lbs
|
