Collapsible Modular Frame Tanks / Fast Tanks

The Canflex “Collapsible Modular Frame Tanks / Fast Tanks” are foldable tanks with a quick and easy to assemble aluminum structure with liner used for oil spill response, environmental operations, and spill recovery.

The frame is made of anodized aluminum 6061-T6; suitable for marine and other harsh environments. All fittings are made from cast anodized marine grade aluminum. All nuts, bolts and washers integral to the fittings are made of stainless steel.

The fast tanks are incredibly stable and designed for use on a variety of terrain. The uprights and cross members of the aluminum structure are all interchangeable; making these tanks “modular.” One set of fast tanks can be used for several different size tanks. All that is needed are liners of the desired capacity. This characteristic not only makes it an extremely versatile product but also more economical for the client.

Some of the Frame Tanks features are:

  • Small and large bulk storage capacities
  • No tools required for setup
  • Fast response tanks that take just minutes to set up with limited personnel
  • Modular design (one set of frames can make multiple tanks)

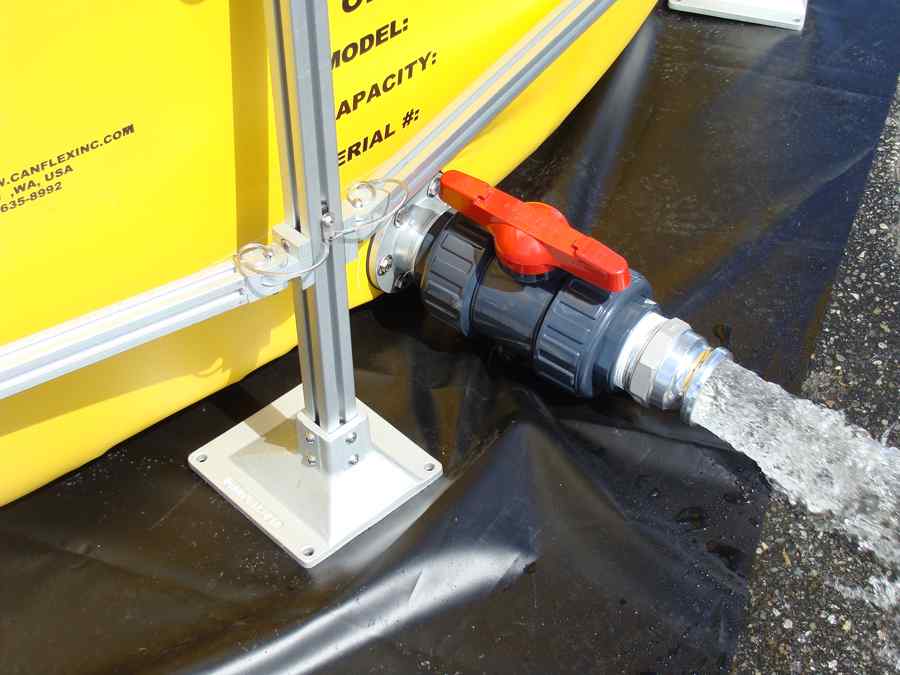

  • Multiple 2” thru 6” connections can be placed anywhere on the tank providing the capability to discharge liquid quickly from any side of the tank
  • All fittings are appropriate for either potable water or hydrocarbons
  • 15 millimeter replaceable inner liner for hydrocarbons or potable water (optional)
  • Loose fitted conical top cover (optional)
  • Custom Clip-Lok style storage / shipping crate

Applications include, but not limited to:

  • Spill Response
  • HAZMAT Operations
  • Military Operations
  • Potable (drinking) Water Tank
  • Disaster Relief
  • Forestry Service
  • Firefighting
  • Chemical Storage
  • Wastewater
  • Aquaculture Farming
  • Remote Storage
  • Fuel Storage
  • Gray Water Storage
  • Portable Water Tank
  • Remediation Projects

Low Profile Frame Tank

Frame Tanks

REQUEST A QUOTE

Technical Information

CANFLEX “LOW PROFILE” FRAME STYLE OPEN TOP TANKS
Model Capacity Length Width Height Dry Weight without accessories # Frame sets / Configuration
m³ / Barrels m m cm kg
  USG   ft   ft   in   lbs
LP/FT-2CM 2.0 / 12.6 2.37 1.18   73.6 52 6 / (2X1)
530 7.77 3.89 29 115
LP/FT-4CM   3.8 / 23.8   2.37 2.37   73.6   77 8 / (2X2)
  1000   7.77 7.77 29   170
LP/FT-6CM   5.7 / 35.7   3.55 2.37   73.6   118 10 / (3X2)
  1,500   11.66   7.77 29   260
LP/FT-8CM 7.5 / 47.6 4.74 2.37 73.6 134 12 / (4X2)
  2,000   15.54   7.77 29   295
LP/FT-8CM-S 7.5 / 47.6 3.55 3.55 73.6 134 12 / (3X3)
  2,000   11.66   11.66 29   295
LP/FT-11CM 11.3 / 71.4 4.74 3.55 73.6 159 14 / (4X3)
  3,000   15.54   11.66 29   350
LP/FT-15CM 15.0 / 95.2 5.92 3.55 73.6 181 16 / (5X3)
  4,000   19.43   11.66 29   400
LP/FT-15CM-S 15.0 / 95.2 4.74 4.74 73.6 181 16 / (4X4)
  4,000   15.54   15.54 29   400
LP/FT-20CM 19.0 / 119 5.92 4.74 73.6 193 18 / (5X4)
  5,000   19.43   15.54 29   425
*All LP/FT “Low Profile Frame Tanks” come with 2 x 3″ NPT connections
CANFLEX FRAME STYLE OPEN TOP TANKS
Model Capacity Max. Diameter Height # of Sides (Frame Sets) Dry Weight without accessories Fill/Offload connections
m³ / Barrels m m kg
  USG   ft   ft   lbs
CF/FT-2CM 2.0 / 12.6 1.95 1.20 5 82 1 x 2″ NPT
530 6.50 3.90 180
CF/FT-3CM 3.0 / 18.9 2.30 1.20 6 86 1 x 2″ NPT
  800   7.50 3.90   190
CF/FT-4CM 4.0 / 25.1 2.61 1.20 7 96 1 x 2″ NPT
  1,000   8.60   3.90   210
CF/FT-6CM 6.0 / 37.7 3.0 1.20 8 127 1 x 2″ NPT
  1,500   10.0   3.90   280
CF/FT-8CM 8.0 / 50.3 3.38 1.20 9 163 1 x 2″ NPT
  2,100   11.1   3.90   360
CF/FT-10CM-E 10.0 / 62.9 3.81 1.20 10 195 1 x 2″ NPT
  2,650   12.50   3.90   430
CF/FT-10CM 10.0 / 62.9 3.81 1.20 10 195 1 x 3″ NPT
  2,650   12.50   3.90   430
CF/FT-12CM 13.2 / 83 4.20 1.20 11 206 1 x 3″ NPT
  3,500   13.8   3.90   455
CF/FT-15CM 15.0 / 94.3 4.50 1.20 12 218 1 x 3″ NPT
  4,000   15.0   3.90   480
CF/FT-20CM 20.0 / 125.8 5.30 1.20 14 255 1 x 3″ NPT
  5,300   17.50   3.90   560
CF/FT-25CM 25.0 / 157.2 5.65 1.20 15 270 1 x 3″ NPT
  6,600   18.50   3.90   600
CF/FT-30CM 30 / 188.7 6.0 1.20 16 290 2 x 3″ NPT
  8,000   20.0   3.90   640
CF/FT-38CM 38 / 239 6.78 1.20 18 306 2 x 3″ NPT
  10,000   22.2   3.90   675
CF/FT-50CM 50 / 314.5 8.30 1.20 22 400 2 x 3″ NPT
  13,200   27.10   3.90   880
CF/FT-80CM 80 / 503.2 10.0 1.20 26 485 2 x 3″ NPT
  21,000   32.20   3.90   1,070
CF/FT-100CM 100 / 629 11.0 1.20 29 567 3 x 3″ NPT
  26,500   36.0   3.90   1,250
CF/FT-150CM 150 / 943.5 13.60 1.20 36 825 3 x 3″ NPT
  40,000   44.60   3.90   1,820
CF/FT-200CM 200 / 1258 15.0 1.20 40 950 3 x 3″ NPT
  52,000   49.50   3.90   2,100
Low Profile Frame Open Top Tanks
Low Profile

Modular Frame Tanks

Capacities: 2m³ to 19m³

Download
Frame Style Open Top Tanks
Open Top

Modular Frame Tanks

Capacities: 2m³ to 200m³

Download
Canflex Oil Spill Products Summary (Fuel & Water)
ISO 9001:2015 CANFLEX Certification
The Modular design of the Canflex Frame Tank

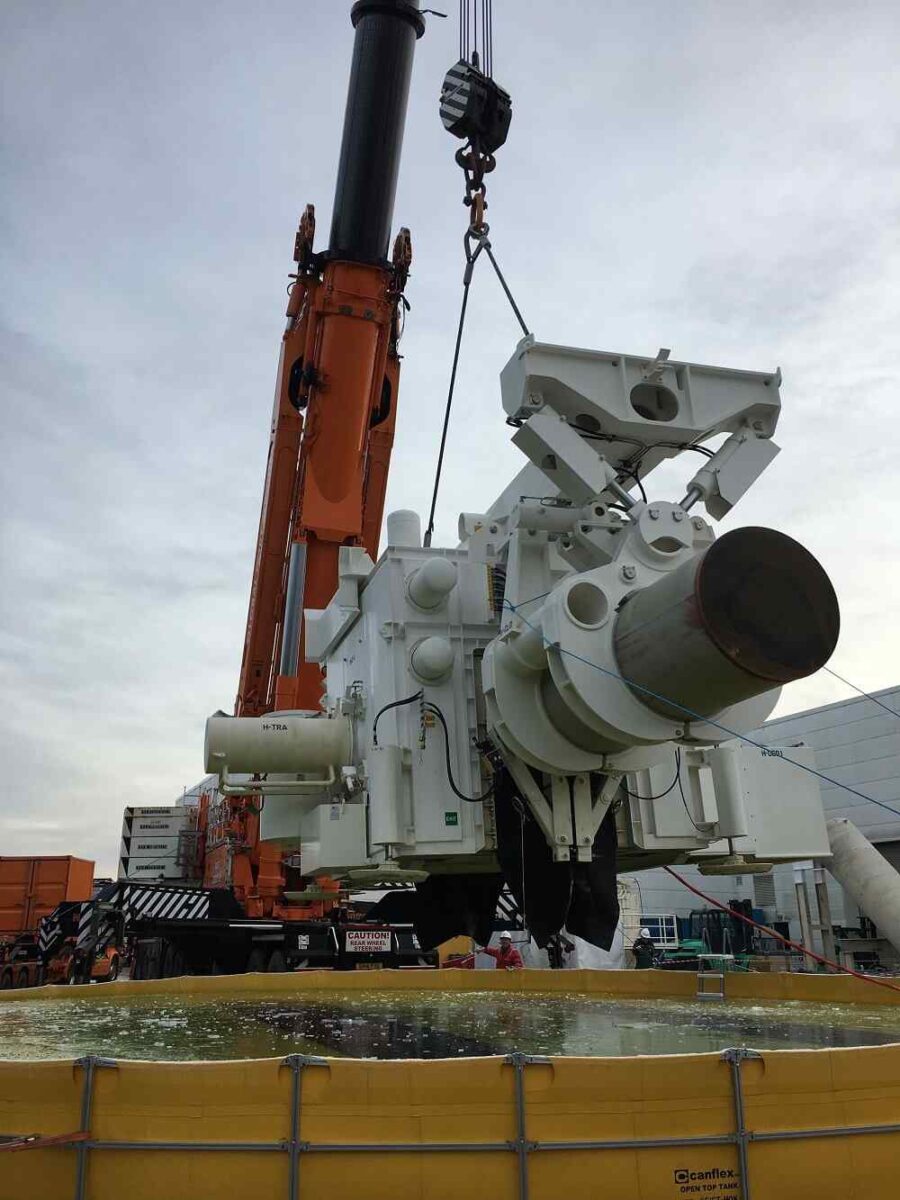

Frame Tanks – capacities of 500 thru 50,000 USG
Deployment and Filling (20,000 US gallons)
Filling tanker from Canflex Frame Tank
Offloading 20,000 US gallons and repacking
