Tetrahedron Water Bags
Precision Load Testing for Safe and Reliable Lifting Operations

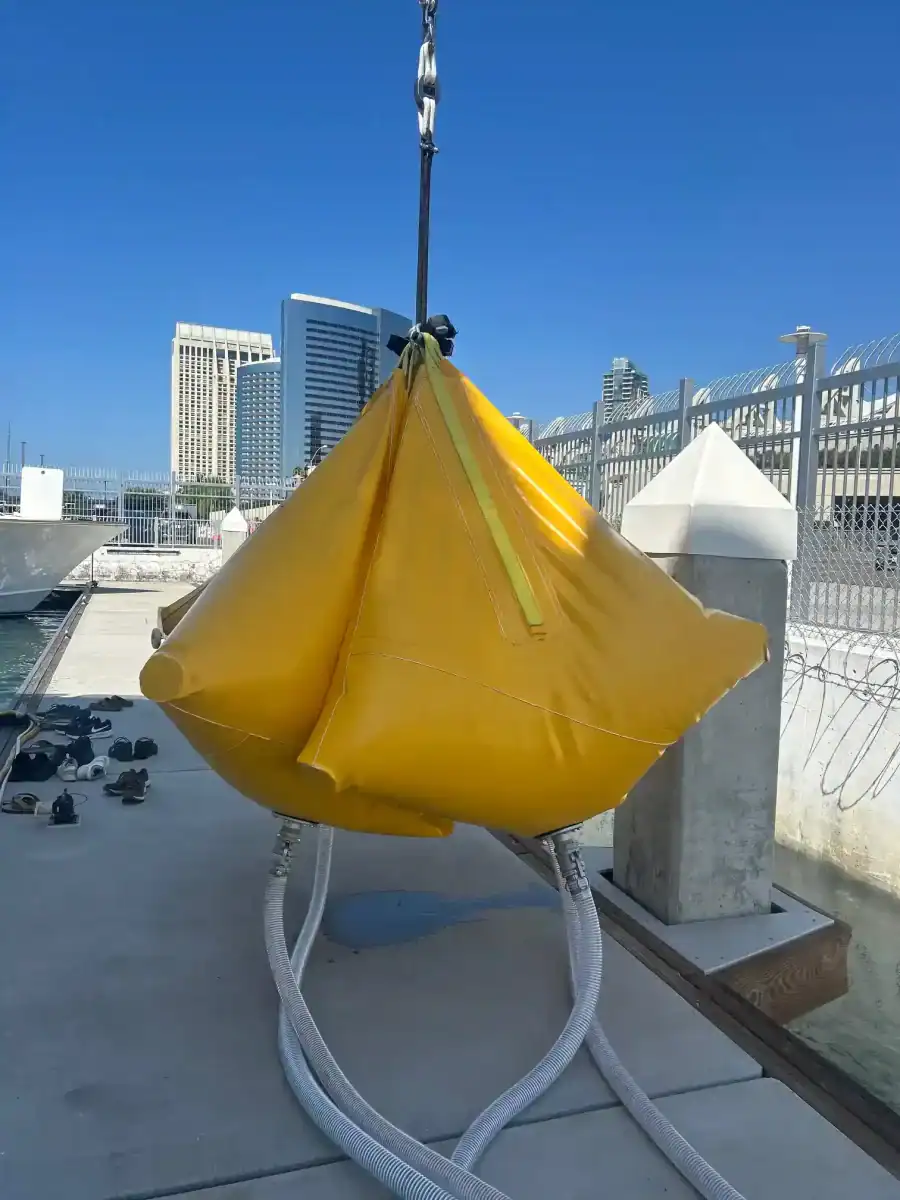

Low Headroom Water bags shaped like Tetrahedrons (100Kg to 750 Kg) bring a novel and effective approach to load testing. They offer a space-saving and efficient approach to load testing in tight clearance environments. Their unique triangular design allows up to four bags to cluster together under a single lift point, maximizing headroom efficiency while maintaining even weight distribution.
Key Features & Advantages
✔ Compact shape for low headroom applications
✔ Allows for multi-bag configurations to optimize load testing
✔ Designed for controlled, uniform weight distribution
✔ Multiple connection options for customized setup
They come with a range of options and accessories, making them more adaptable and safer to use.
Optional Configurations & Accessories:

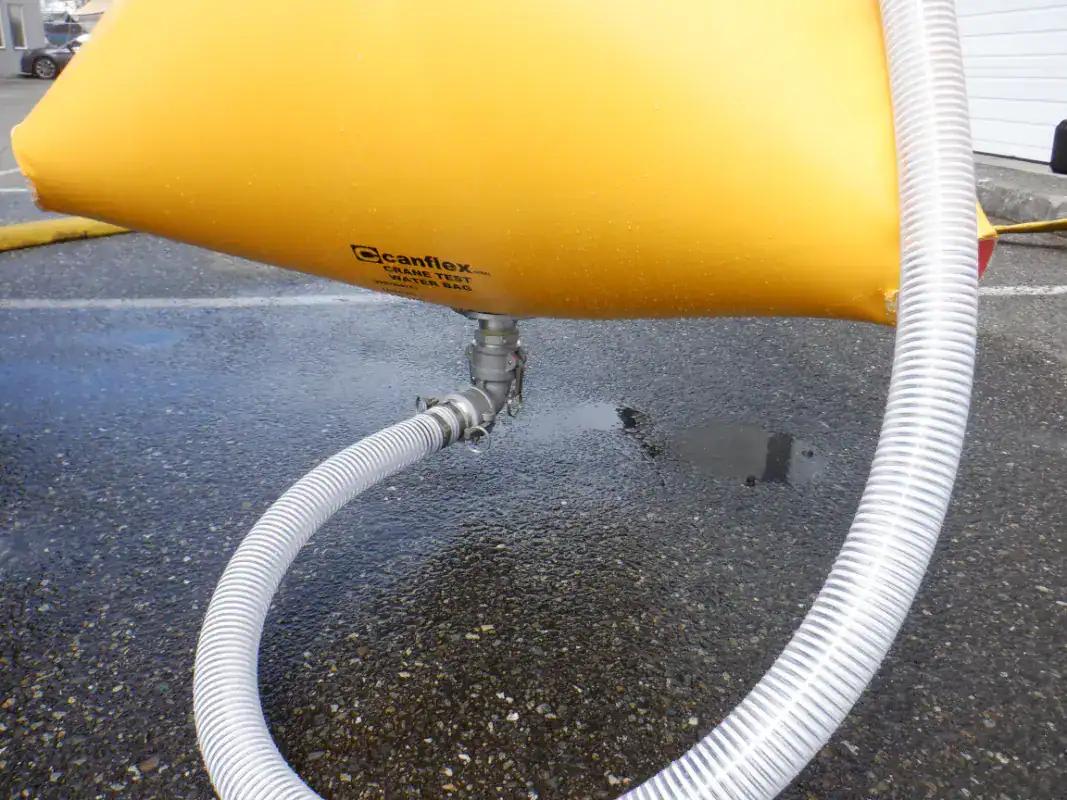

✔ 2” or 3” side connection with suction hose for alternative filling methods
✔ Closed top with relief valve for added safety
Capacities for Tetrahedron Water Bags range from 220 lbs to 1650 lbs (100 kg to 750 kg).
Tetrahedon Video
Testing Applications include, but not limited to:
- Cranes
- Winches
- Davits
- Pad Eyes
- Hoists
- Beams
- Gantries
- Elevators
- Monorails
- Floors
- Ramps
- Platforms
- Gangways
- Lifts
- Bridges
TETRAHEDRON SHAPE LOW HEADROOM CRANE TEST WATER BAGS
| Model | Weight | Volume | Filled Height | Diameter Base | §Dry Weight |
|---|---|---|---|---|---|
| *CT/CPS-100KG | 100 kg / 0.1 tonne 220 lb | 0.10 m³ 26.4 USG | 0.85 m 33.5 in | 0.85 m 33.5 in | 4.5 kg 10 lb |
| *CT/CPS-250KG | 250 kg / 0.25 tonne 552 lb | 0.25 m³ 66 USG | 1.21 m 48 in | 1.21 m 48 in | 14 kg 30 lb |
| *CT/CPS-375KG | 375 kg / 0.375 tonne 826 lb | 0.375 m³ 100 USG | 1.37 m 54 in | 1.27 m 50 in | 17 kg 37 lb |
| *CT/CPS-500KG | 500 kg / 0.50 tonne 1,100 lb | 0.50 m³ 132 USG | 1.42 m 56 in | 1.42 m 56 in | 23 kg 50 lb |
| *CT/CPS-600KG | 600 kg / 0.60 tonne 1,320 lb | 0.60 m³ 158 USG | 1.52 m 60 in | 1.52 m 60 in | 29.5 kg 65 lb |
| *CT/CPS-750KG | 750 kg / 0.75 tonne 1,653 lb | 0.75 m³ 200 USG | 1.70 m 67 in | 1.65 m 65 in | 34 kg 75 lb |
* Water Bag is packed in carry/storage satchel
§ Dry Weight does not include hoses or ball valves
