Surface Buoyancy Air Lift Bag – Enclosed Bottom Parachute Style “TE/DLE”

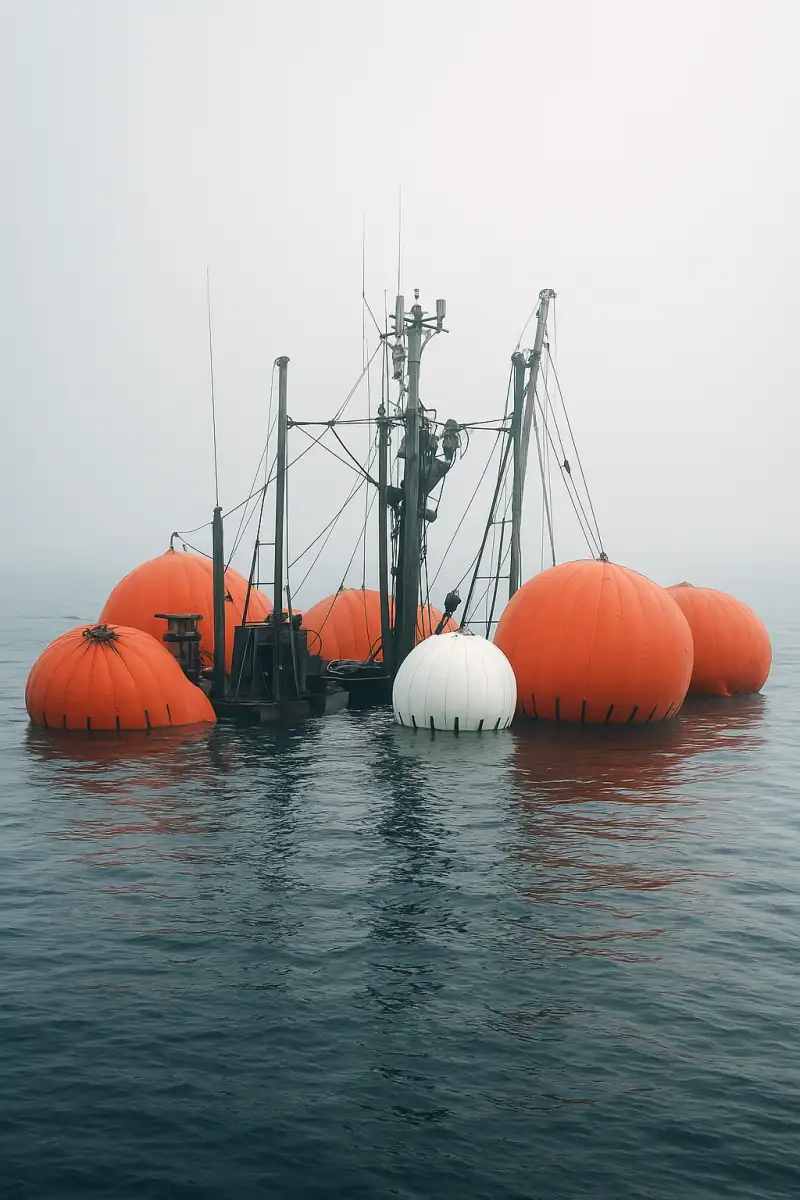

The Canflex heavy duty “Surface Buoyancy Air Lift Bags” are used world-wide for raising sunken objects, vessel salvage, marine structure stabilization, under water equipment transport, pipeline and equipment towing, and standby emergency buoyancy.

The Canflex Model TE/DLE (Totally Enclosed Lift Bag style) are tear drop shaped inflatable buoyancy units used for supporting loads on the surface of the water. These lift bags are equipped with one positive venting relief/dump valve mounted in center of the top lift plate. This valve is spring loaded with spring pressure set to automatically open when over-pressured.

All TE/DLE lift bags up to 10 tonne capacity, come with a 146 mm threaded connector and an air tight cap. The use of this bottom fitting allows the lift bag to be either totally enclosed TE/DLE or open bottom OB/DL.

For another style of Static Buoyancy Assist Lift Bag see also Model “ELB.”

Some of the Canflex Model TE/DLE lift bag features are:

Large lift capacity in a small packing space
Equipped with Inverter Line Attachment Point
All seams are RF welded
Appropriate screw pin shackle(s) and master links for a single lift / attachment point
½” or ¾” NPT fill port with inflation valves available
Operational Manual with Certifications and Log Book
High Flow Relief/dump valve can be inverted and set to manual dump position for open bottom OB/DL lift bag style
ABS load / volume certificate/verification of capacity available

Testing Applications include, but not limited to:

Deep and Shallow Water Salvage
Towing
Recreational Diving
Emergency Rescue

General Flotation
Static Buoyancy assist
Pipe or Cable Flotation
Under Water Construction

Capacities range from 1 to 10 Tonnes (1,000 to 10,000 kg).

Technical Information

CANFLEX LIFT BAGS “ENCLOSED” BOTTOM STYLE

Model		Lift Capacity		Height		Width		Volume		Shipping Cube		Dry Weight
Model		kg	lb	m	ft-in	m	ft-in	m³	ft³	m³	ft³	kg	lb
*	DLE-1	1000	2200	1.80	5′-11″	1.20	3′-11″	1.00	35.32	0.15	5.4	20.41	45
*	DLE-2	2000	4400	2.20	7′-3″	1.50	4′-11″	2.00	70.63	0.18	6.5	27.22	60
*	DLE-3	3000	6600	2.60	8′-7″	1.70	5′-8″	3.00	105.95	0.24	8.4	34.02	75
*	DLE-5	5000	11000	3.00	10′-0″	2.00	6′-8″	5.00	176.58	0.40	14.0	45.36	100
*	DLE-6	6000	13200	3.35	11′-0″	2.31	7′-7″	6.00	211.89	0.45	16.0	54.43	120
*	DLE-10	10000	22000	3.84	12′-7″	2.56	8′-4″	10.00	353.15	0.57	20.0	74.84	165

NOTE: All capacities are based on fresh water, 100 kg/m³ (62.4 lbs/ft³) 1000 kg = 1 Metric Tonne = 2205 lbs; 1 Short Ton = 2000 lbs; 1 Long Tonne = 2240 lbs MATERIAL SPECIFICATIONS: “High Tenacity – PVC coated Polyester Fabric” with RF (HF) Welded seams (*) Total material weight = 48 oz/yd² (1622 g/m²). All Surface and Underwater Lift Bags are completely equipped including: Appropriate quantity of automatic air relief valves and/or manual dump valve, lift harness of high strength polyester and carry/storage satchel or marine-grade, shipping/storage plywood box.
